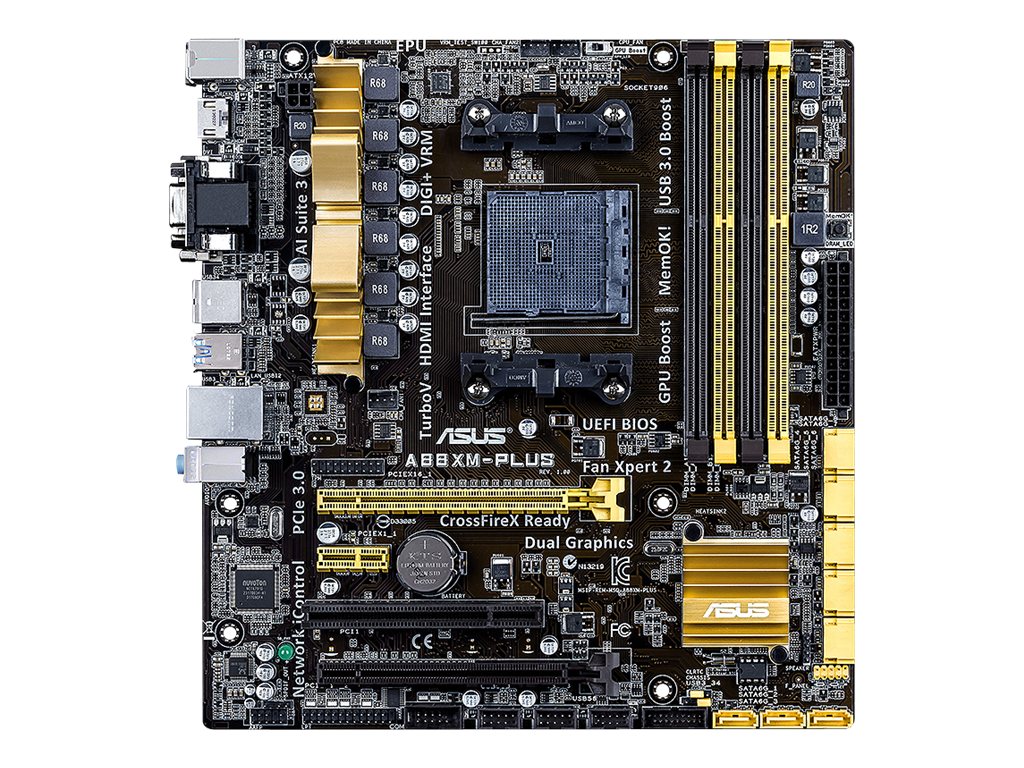

ASUS A88XM-PLUS - Motherboard


Login for Price
Stock: n/a
ASUS A88XM-PLUS - Motherboard

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • micro ATX
  • Socket FM2+
  • AMD A88X
  • USB 3.0
  • Gigabit LAN
ASUS A88XM-PLUS - Motherboard
  • micro ATX
  • Socket FM2+
  • AMD A88X
  • USB 3.0
  • Gigabit LAN
  • onboard graphics (CPU required)
  • HD Audio (8-channel)
  Additional Details
Mfr Part #: A88XM-PLUS
SHI Part #: 29881844
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: ASUS
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionASUS A88XM-PLUS - Motherboard - micro ATX - Socket FM2+ - AMD A88X - USB 3.0 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
ManufacturerASUS
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth23.4 cm
Dimensions & Weight / Width24.4 cm
Header / BrandASUS
Header / CompatibilityPC
Mainboard / Chipset TypeAMD A88X
Mainboard / Compatible Processors
  • A series
  • Athlon
Mainboard / Processor SocketSocket FM2+
Networking / Data Link Protocol
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Packaged Quantity1
Video Output / TypeGraphics adapter (CPU required)
Audio
Audio CodecRealtek ALC887
Compliant StandardsHigh Definition Audio
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 4 x DIMM 240-pin
  • 1 x PCIe 3.0 x16 (FM2+ processor must be installed)
  • 1 x PCIe 2.0 x16 (x4 mode)
  • 1 x PCIe 2.0 x1
  • 1 x PCI
Interfaces
  • 1 x LAN (Gigabit Ethernet)
  • 1 x PS/2 keyboard
  • 1 x PS/2 mouse
  • 1 x DVI
  • 1 x HDMI
  • 1 x VGA
  • 2 x USB 3.0
  • 4 x USB 2.0
  • 1 x audio line-in - mini-jack
  • 1 x audio line-out - mini-jack
  • 1 x microphone - mini-jack
Internal Interfaces
  • 6 x USB 2.0 - header
  • 2 x USB 3.0 - header
  • 1 x SPDIF out - header
  • 1 x serial - header
  • 1 x audio - header
  • 1 x parallel - header
Power Connectors4-pin ATX12V connector, 24-pin main power connector
Storage InterfacesSATA-600 -connectors: 8 x 7pin Serial ATA - 8 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 / JBOD
Features
BIOS FeaturesDMI 2.0 support, WfM 2.0 support, Multilingual BIOS, ASUS MyLogo2, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, ACPI 2.0a support, UEFI BIOS, SMBIOS 2.7 support
BIOS TypeAMI
Hardware FeaturesJack retasking, MemOK!, ASUS Q-Design, ESD Guards, ASUS TurboV EVO, ASUS 4+2 Phase Power Design, GPU Boost, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, All-Solid Capacitor motherboard Design, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, Fanless Design Heatsink, AMD Radeon Dual Graphics, USB 3.0 Boost, AMD CrossFireX technology support, ASUS Fan Xpert 2, ASUS Network iControl, Disk Unlocker, AMD Turbo CORE 3.0 technology, AMD Memory Profile (AMP) support, ASUS 5X PROTECTION, 4K Ultra HD ready, ASUS Enhanced DRAM Overcurrent Protection, ASUS Boot Setting, Clear CMOS Button, ASUS Stainless Steel Back I/O
General
Chipset TypeAMD A88X
Compatible ProcessorsAthlon, A series (supports CPUs with up to 4 cores)
Max Processors Qty1
Processor SocketSocket FM2+
Product TypeMotherboard - micro ATX
Graphics
Max Allocated RAM Size2 GB
LAN
Network ControllerRealtek RTL8111G
Network InterfacesGigabit Ethernet
Miscellaneous
Cables Included2 x Serial ATA cable
Compliant StandardsPlug and Play, ACPI 2.0a, ErP Ready
Depth23.4 cm
Included AccessoriesI/O back plate
Software IncludedDrivers & utilities, ASUS MyLogo2, ASUS EZ Flash 2, ASUS AI Charger, ASUS Update, ASUS AI Suite III
Width24.4 cm
Supported RAM
Bus Clock1600 MHz, 1333 MHz, 1866 MHz, 2133 MHz, 2400 MHz (O.C.), 2200 MHz (O.C.), 2250 MHz (O.C.)
FeaturesDual channel memory architecture, AMD Memory Profile (AMP)
Max Size64 GB
TechnologyDDR3
