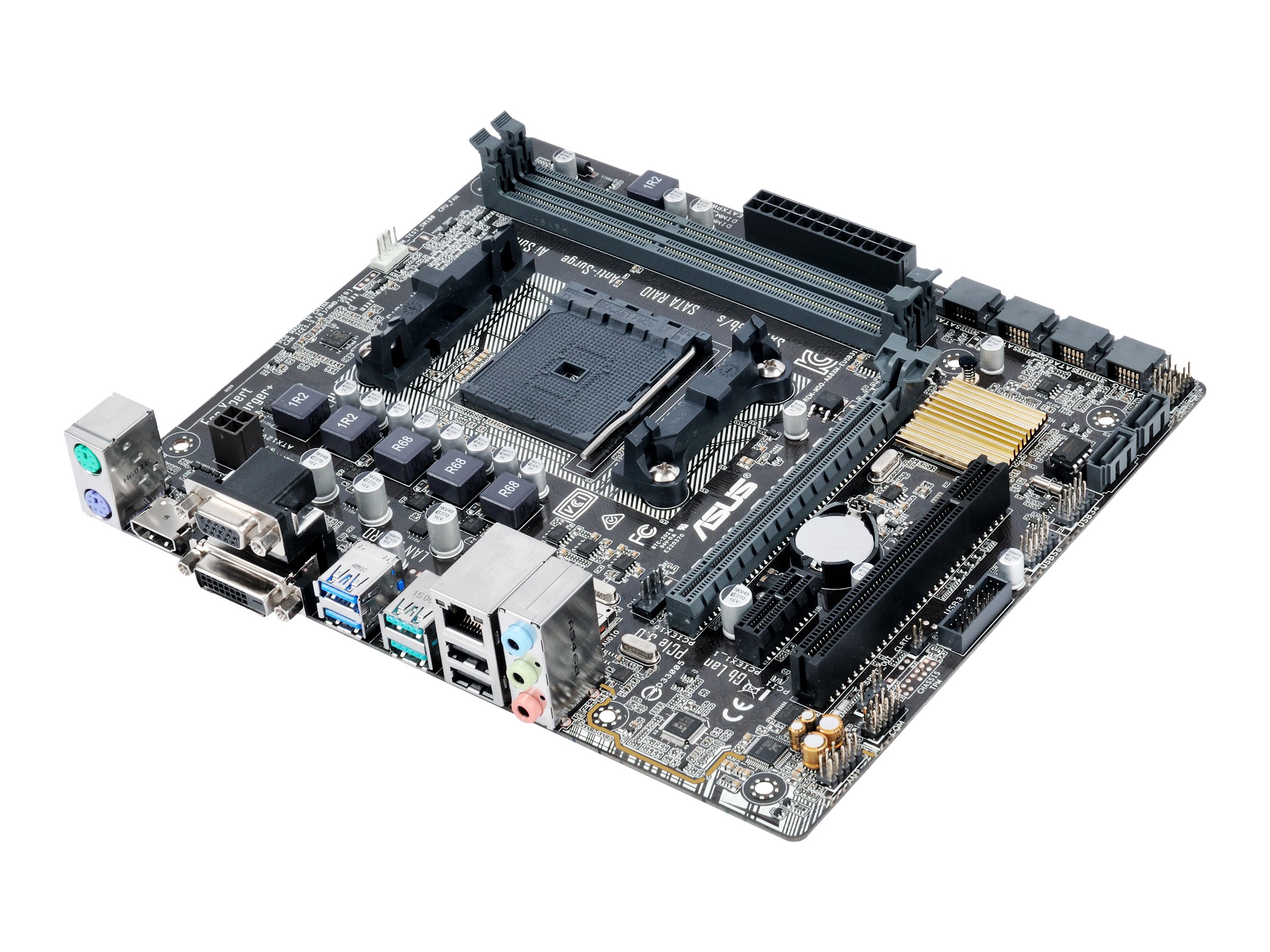

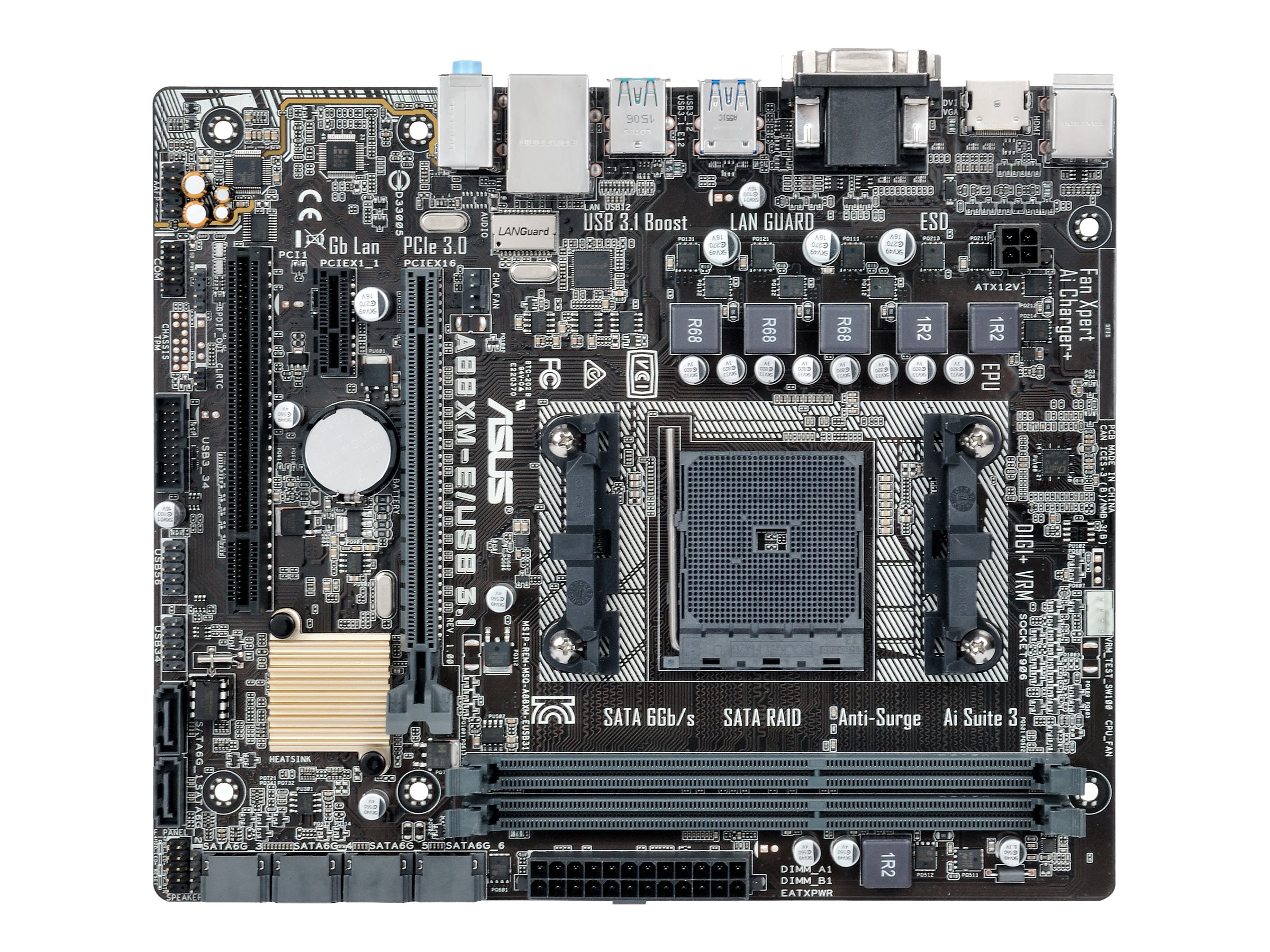

ASUS A88XM-E/USB 3.1
Stock: n/a
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ASUS A88XM-E/USB 3.1
- Motherboard
- micro ATX
- Socket FM2+
- AMD A88X Chipset
- USB 3.0, USB 3.1 Gen 2
- Gigabit LAN
- onboard graphics (CPU required)
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Mfr Part #: | A88XM-E/USB 3.1 |
| SHI Part #: | 32060462 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASUS |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASUS A88XM-E/USB 3.1 - Motherboard - micro ATX - Socket FM2+ - AMD A88X Chipset - USB 3.0, USB 3.1 Gen 2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel) |
| Manufacturer | ASUS |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 19.05 cm |
| Dimensions & Weight / Width | 22.6 cm |
| Header / Brand | ASUS |
| Mainboard / Chipset Type | AMD A88X |
| Mainboard / Compatible Processors |
|
| Mainboard / Processor Socket | Socket FM2+ |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Audio Codec | Realtek ALC887 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 / JBOD |
| Features | |
| BIOS Features | DMI 2.0 support, WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, SMBIOS 2.6 support, UEFI BIOS, ACPI 4.0a support |
| BIOS Type | AMI |
| Hardware Features | Jack retasking, ASUS Anti-Surge Protection, ASUS Q-Design, ESD Guards, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Fan Xpert, ASUS DIGI+ VRM, Fanless Design Heatsink, AMD Radeon Dual Graphics, Disk Unlocker, AMD Turbo CORE 3.0 technology, AMD Memory Profile (AMP) support, ASUS Enhanced DRAM Overcurrent Protection, ASUS Stainless Steel Back I/O, LANGuard, USB 3.1 Boost, ASUS 5X Protection II |
| General | |
| Chipset Type | AMD A88X |
| Compatible Processors | Athlon, A series (supports CPUs with up to 4 cores) |
| Max Processors Qty | 1 |
| Processor Socket | Socket FM2+ |
| Product Type | Motherboard - micro ATX |
| Graphics | |
| Max Allocated RAM Size | 2 GB |
| LAN | |
| Network Controller | Realtek RTL8111H |
| Network Interfaces | Gigabit Ethernet |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Compliant Standards | Plug and Play, ACPI 4.0a |
| Depth | 19.05 cm |
| Included Accessories | I/O back plate |
| Software Included | ASUS EZ Flash 2, ASUS AI Charger+, ASUS AI Suite III, Mobo Connect, PC Cleaner |
| Width | 22.6 cm |
| Supported RAM | |
| Bus Clock | 1600 MHz, 1333 MHz, 1866 MHz, 2133 MHz, 2400 MHz (O.C.) |
| Features | Dual channel memory architecture, AMD Memory Profile (AMP) |
| Max Size | 32 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR3 |
