ASUS PRIME B250M-K - Motherboard


MSRP£69.73
Login for Price
Stock: n/a
ASUS PRIME B250M-K - Motherboard

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • micro ATX
  • LGA1151 Socket
  • B250 Chipset
  • USB 3.0
  • Gigabit LAN
ASUS PRIME B250M-K - Motherboard
  • micro ATX
  • LGA1151 Socket
  • B250 Chipset
  • USB 3.0
  • Gigabit LAN
  • onboard graphics (CPU required)
  • HD Audio (8-channel)
  Additional Details
MSRP: £69.73
Mfr Part #: PRIME B250M-K
SHI Part #: 33149451
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: ASUS
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionASUS PRIME B250M-K - Motherboard - micro ATX - LGA1151 Socket - B250 Chipset - USB 3.0 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
ManufacturerASUS
MSRP£69.73
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth18.5 cm
Dimensions & Weight / Width22.6 cm
Header / BrandASUS
Mainboard / Chipset TypeIntel B250
Mainboard / Compatible Processors
  • Celeron
  • Core i3
  • Core i5
  • Core i7
  • Pentium
Mainboard / Processor SocketLGA1151 Socket
Networking / Data Link Protocol
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Packaged Quantity1
Video Output / TypeGraphics adapter (CPU required)
Audio
Audio CodecRealtek ALC887
Compliant StandardsHigh Definition Audio
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 2 x DIMM 288-pin
  • 1 x PCIe 3.0 x16
  • 2 x PCIe 3.0 x1

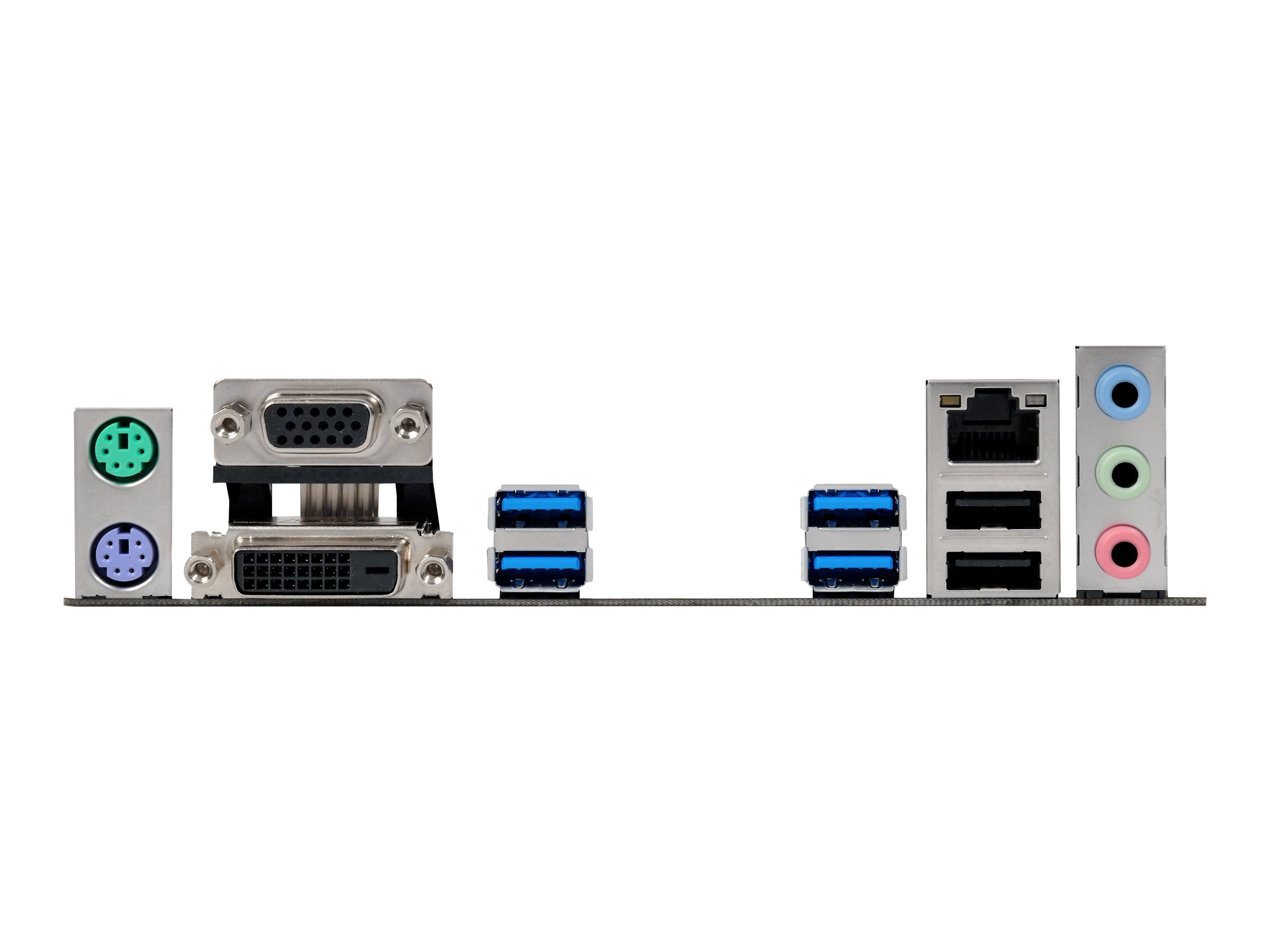

Interfaces
  • 1 x LAN (Gigabit Ethernet)
  • 4 x USB 3.0
  • 2 x USB 2.0
  • 1 x PS/2 keyboard
  • 1 x audio line-in - mini-jack
  • 1 x audio line-out - mini-jack
  • 1 x microphone - mini-jack
  • 1 x PS/2 mouse
  • 1 x VGA
  • 1 x DVI-D
Internal Interfaces
  • 4 x USB 2.0 - header
  • 2 x USB 3.0 - header
  • 1 x serial - header
  • 1 x SPDIF out - header
  • 1 x audio - header
Power Connectors4-pin ATX12V connector, 24-pin main power connector
Storage Interfaces
  • SATA-600 -connectors: 6 x 7pin Serial ATA
  • SATA-600 / PCIe 3.0 -connectors: 1 x M.2
Features
BIOS FeaturesWfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ASUS EZ Flash 3, DMI 3.0 support, SMBIOS 3.0 support, ACPI 6.1 support
BIOS TypeAMI
Hardware FeaturesJack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Extreme Memory Profile (XMP) support, ASUS Fan Xpert, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Intel Clear Video HD Technology, Fanless Design Heatsink, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, ASUS Overvoltage Protection, Lighting Control, ASUS 5X Protection III, ASUS SafeSlot Core
Sleep / Wake UpWake on LAN (WOL)
General
Chipset TypeIntel B250
Compatible ProcessorsPentium, Celeron, Core i5, Core i3, Core i7 (supports 6th and 7th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)
Max Processors Qty1
Processor SocketLGA1151 Socket
Product TypeMotherboard - micro ATX
Graphics
Max Allocated RAM Size1 GB
LAN
Network ControllerRealtek RTL8111H
Network InterfacesGigabit Ethernet
Miscellaneous
Cables Included2 x Serial ATA cable
Compliant StandardsPlug and Play
Depth18.5 cm
Included Accessories1 x M.2 screw, I/O back cover
Software IncludedDrivers & utilities, ASUS MyLogo2, ASUS AI Charger, ASUS AI Suite III, ASUS EZ Flash 3
Width22.6 cm
Supported RAM
Bus Clock2400 MHz, 2133 MHz
FeaturesDual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Max Size32 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckNon-ECC
TechnologyDDR4
