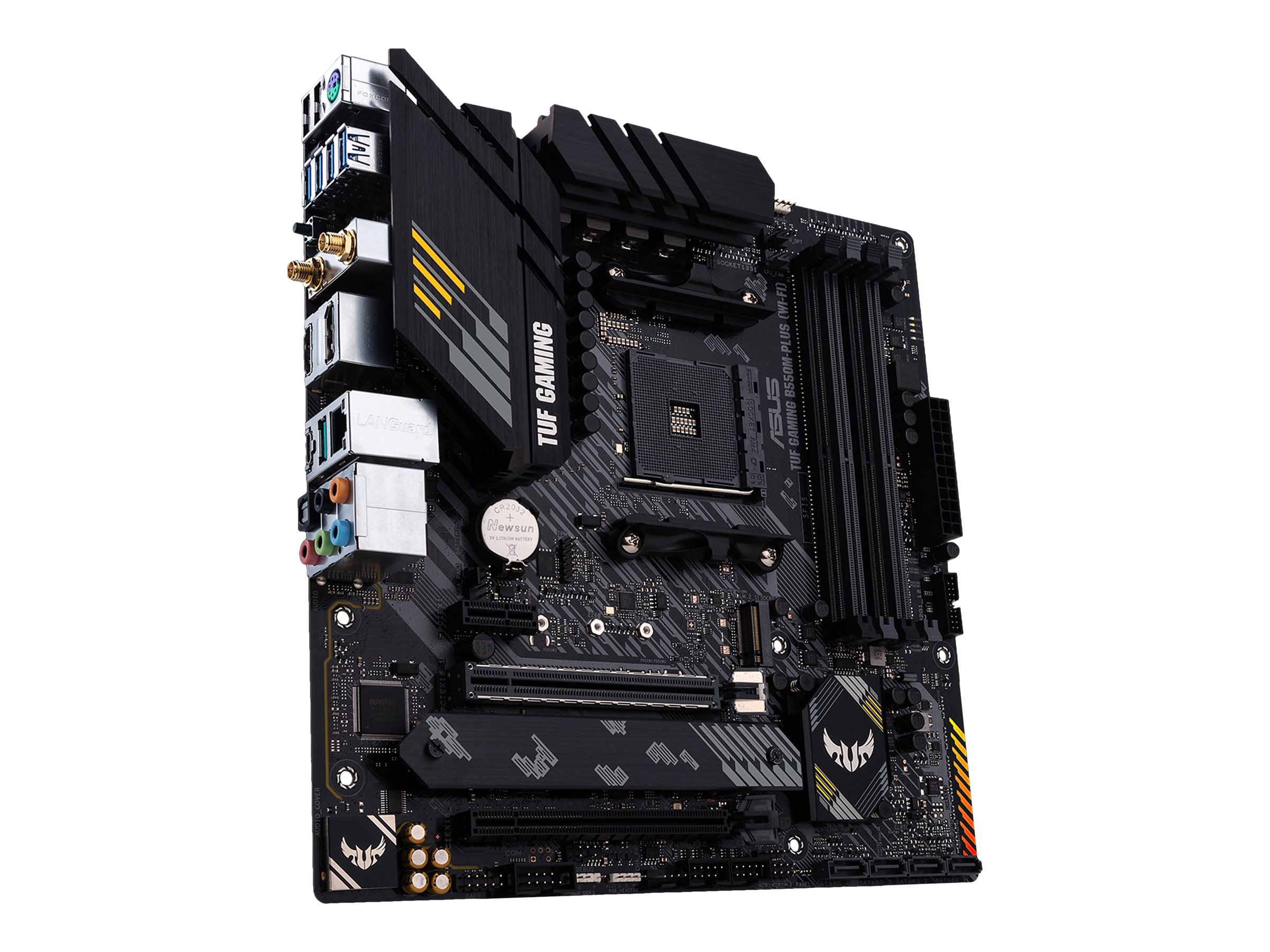

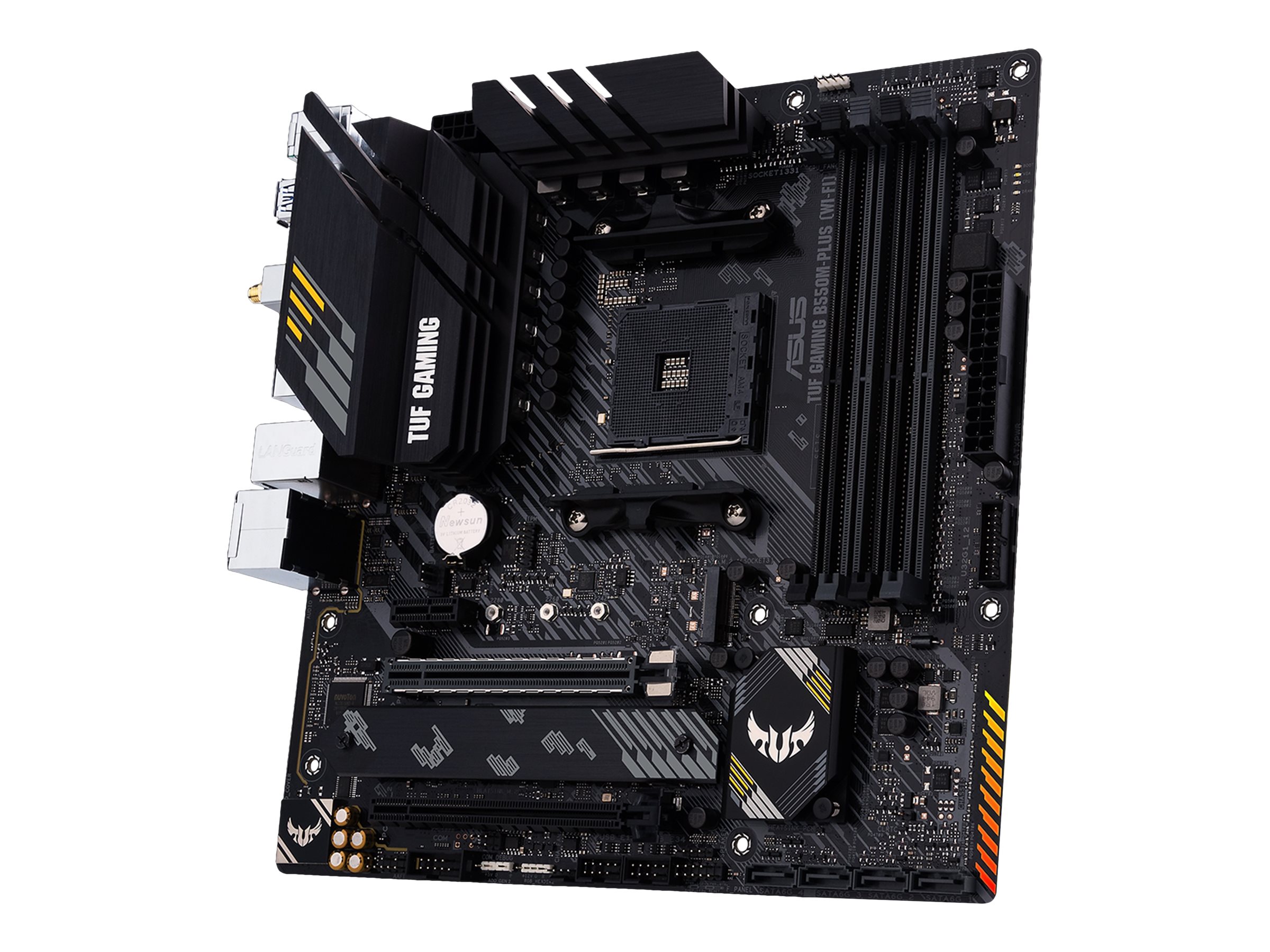

ASUS TUF GAMING B550M-PLUS (WI-FI)


£154.00
Stock: 10
ASUS TUF GAMING B550M-PLUS (WI-FI)

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Motherboard
  • micro ATX
  • Socket AM4
  • AMD B550 Chipset
  • USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2
ASUS TUF GAMING B550M-PLUS (WI-FI)
  • Motherboard
  • micro ATX
  • Socket AM4
  • AMD B550 Chipset
  • USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2
  • 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth
  • onboard graphics (CPU required)
  • HD Audio (8-channel)
  Additional Details
Price: £154.00
Mfr Part #: TUF GAMING B550M-PLUS (WI-FI)
SHI Part #: 40242493
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: ASUS
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionASUS TUF GAMING B550M-PLUS (WI-FI) - Motherboard - micro ATX - Socket AM4 - AMD B550 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
ManufacturerASUS
MSRP£0.00
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth24.4 cm
Dimensions & Weight / Width24.4 cm
Header / BrandASUS
Mainboard / Chipset TypeAMD B550
Mainboard / Compatible ProcessorsRyzen
Mainboard / Processor SocketSocket AM4
Networking / Data Link Protocol
  • 2.5 Gigabit Ethernet
  • 802.11ax
  • Bluetooth 5.1
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Packaged Quantity1
Video Output / TypeGraphics adapter (CPU required)
Audio
Audio CodecRealtek ALCS1200A
Compliant StandardsHigh Definition Audio, DTS Custom
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 4 x DIMM 288-pin
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16 (x4 mode)

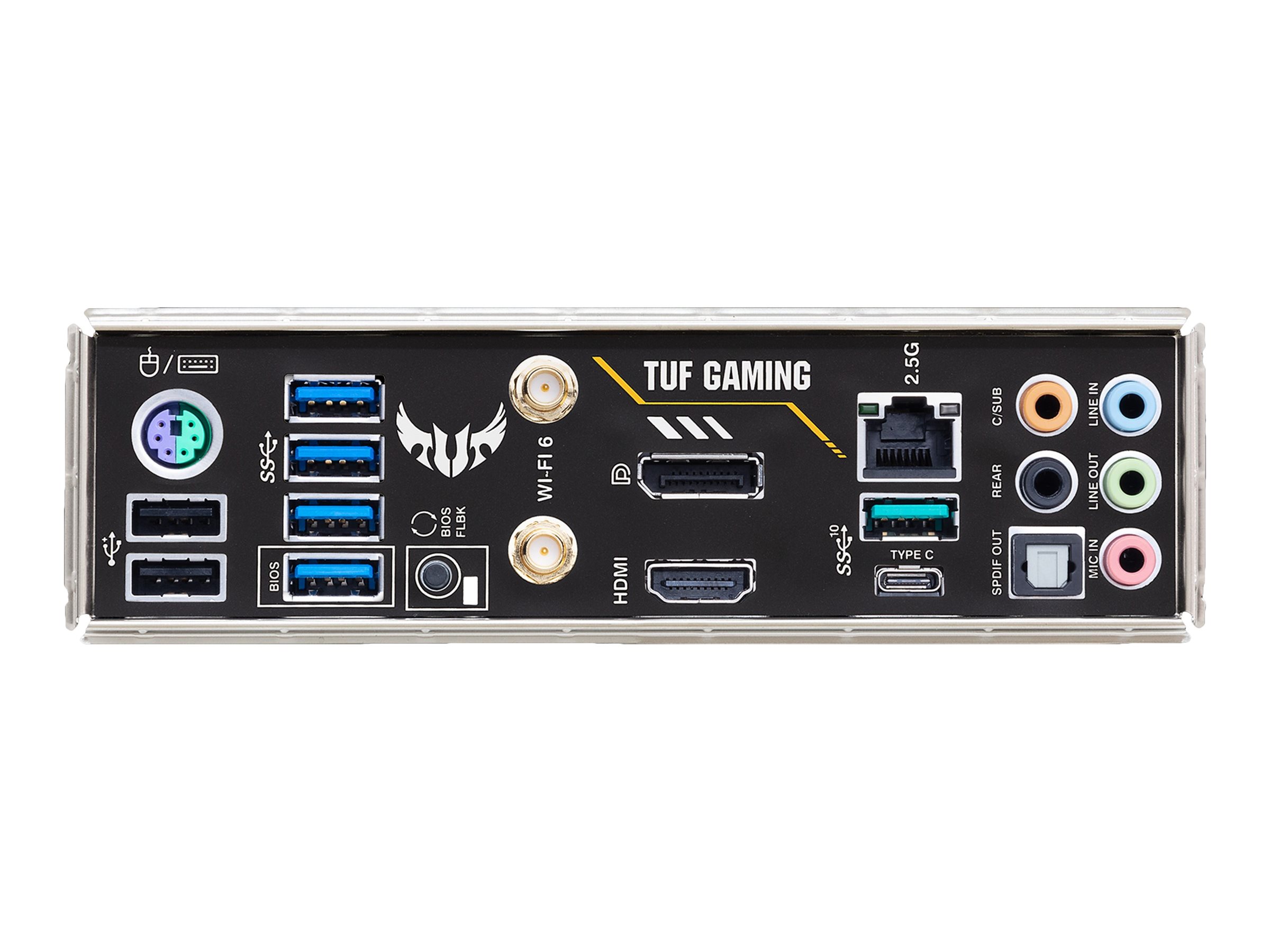

Interfaces
  • 1 x DisplayPort
  • 1 x TOSLINK
  • 1 x LAN (2.5Gigabit Ethernet)
  • 4 x USB 3.2 Gen 1
  • 1 x USB 3.2 Gen 2
  • 1 x audio line-in - mini-jack
  • 1 x audio line-out - mini-jack
  • 1 x microphone - mini-jack
  • 1 x PS/2 keyboard / mouse
  • 1 x HDMI
  • 1 x USB-C Gen2
  • 2 x USB 2.0
  • 1 x audio line-out (rear) - mini-jack
  • 1 x audio line-out (center/subwoofer) - mini-jack
Internal Interfaces
  • 4 x USB 2.0 - header
  • 2 x USB 3.2 Gen 1 - header
  • 1 x audio - header
  • 1 x serial - header
  • 1 x speaker - header
Power Connectors24-pin main power connector, 8-pin ATX12V connector
Storage Interfaces
  • SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
  • SATA-600 / PCIe 4.0 -connectors: 1 x M.2
  • SATA-600 / PCIe 3.0 -connectors: 1 x M.2
Features
BIOS FeaturesUEFI BIOS, ASUS EZ Flash 3
BIOS TypeAMI
Hardware FeaturesJack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, AMD CrossFireX technology support, ASUS Enhanced DRAM Overcurrent Protection, ASUS Stainless Steel Back I/O, Turbo LAN, ASUS Fan Xpert 2+, TUF ESD Guards, ProCool Power Connector, TUF LANGuard, ASUS Overvoltage Protection, ASUS SafeSlot, M.2 heatsink, ASUS TUF Protection, ASUS Aura Sync, Armoury Crate, 8+2 DrMOS power stages
Sleep / Wake UpWake on LAN (WOL)
General
Chipset TypeAMD B550
Compatible ProcessorsRyzen (supports 3rd Generation Ryzen)
Max Processors Qty1
Processor SocketSocket AM4
Product TypeMotherboard - micro ATX
LAN
Network ControllerRealtek RTL8125B / Intel AX200
Network Interfaces2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.1
Miscellaneous

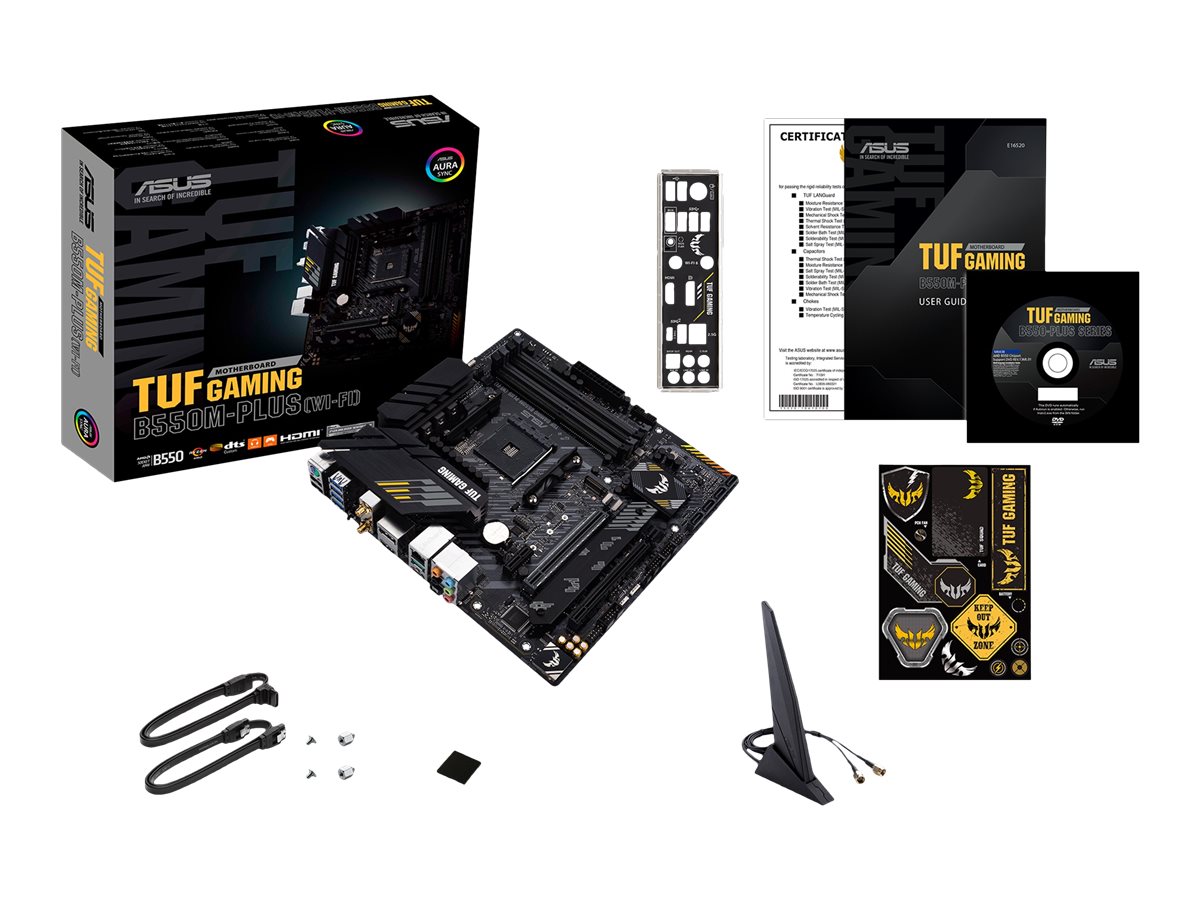

Cables Included2 x Serial ATA cable
Depth24.4 cm
Included Accessories1 x M.2 screw, I/O back cover, TUF stickers, ASUS Wi-Fi moving antenna
Software IncludedDrivers & utilities, ASUS AI Charger, ASUS CPU-Z, ASUS AI Suite III, ASUS EZ Update, DAEMON Tools, WinRAR, Norton AntiVirus (60 days trial)
Width24.4 cm
Supported RAM
Bus Clock2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 3200 MHz
Max Size128 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckECC
TechnologyDDR4
