APC Easy Switched Rack PDU EPDU1232SX3620
MSRP£1,821.14
Stock: 11
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

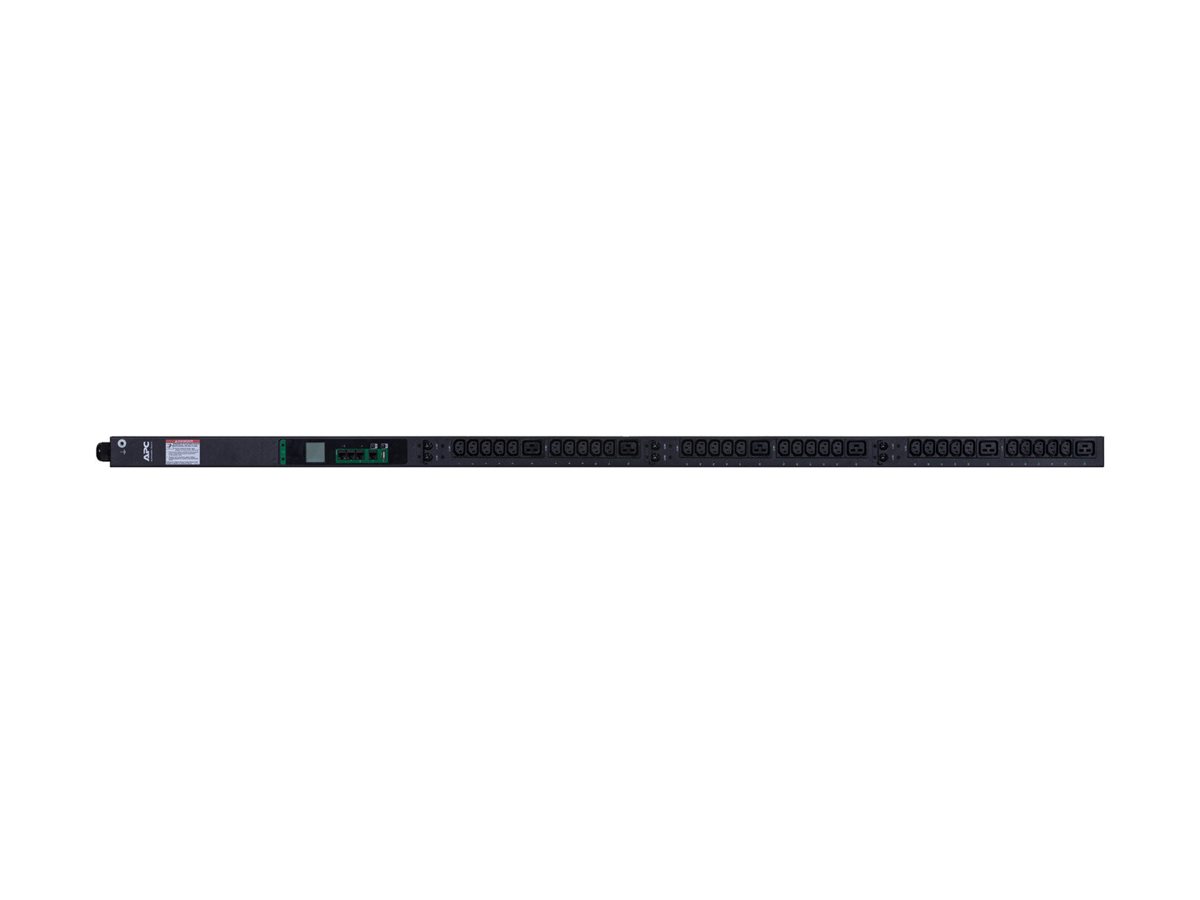

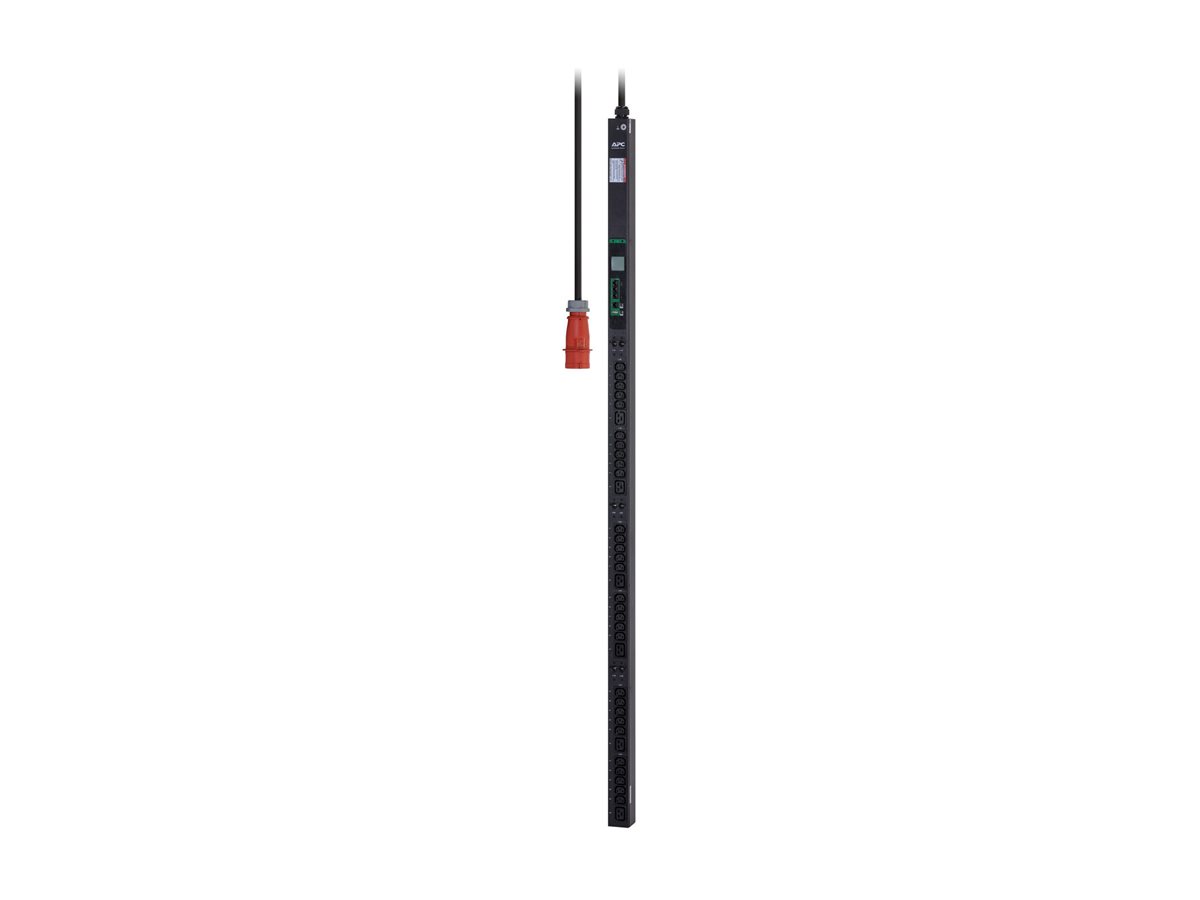

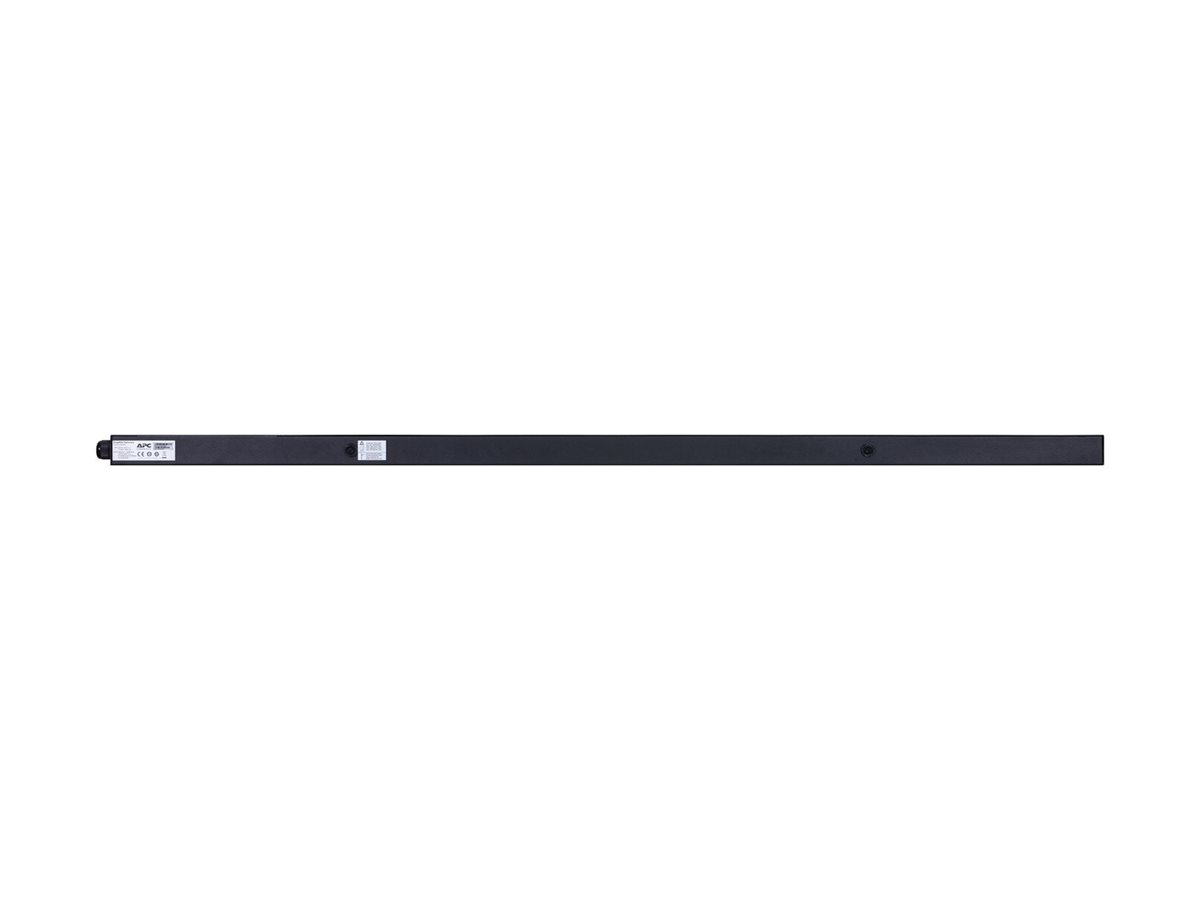

APC Easy Switched Rack PDU EPDU1232SX3620
- Power distribution unit (rack-mountable)
- AC 200-240/346-415 V
- 22 kW
- 3-phase
- Ethernet, RS-485, USB
- input: IEC 60309
- output connectors: 36 (30 x IEC 60320 C13, 6 x IEC 60320 C19)
- 0U
- 2 m cord
- black
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | £1,821.14 |
| Mfr Part #: | EPDU1232SX3620 |
| SHI Part #: | 42418321 |
| Category: | Power distribution units PDUs |
| UNSPSC: | 39121017 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power distribution units PDUs |
| Description | APC Easy Switched Rack PDU EPDU1232SX3620 - Power distribution unit (rack-mountable) - AC 200-240/346-415 V - 22 kW - 3-phase - Ethernet, RS-485, USB - input: IEC 60309 - output connectors: 36 (30 x IEC 60320 C13, 6 x IEC 60320 C19) - 0U - 2 m cord - black |
| Manufacturer | APC by Schneider Electric |
| MSRP | £1,821.14 |
| UNSPSC | 39121017 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.2 cm |
| Dimensions & Weight / Height | 179.4 cm |
| Dimensions & Weight / Weight | 8.28 kg |
| Dimensions & Weight / Width | 5.5 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 36 |
| Power Device / Voltage Required | AC 200-240/346-415 V |
| Product Type | Power distribution unit |
| Dimensions & Weight | |
| Depth | 6.2 cm |
| Height | 179.4 cm |
| Weight | 8.28 kg |
| Width | 5.5 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 11 cm |
| Shipping Height | 195 cm |
| Shipping Weight | 9.56 kg |
| Shipping Width | 16 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | -5 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Cord Length | 2 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Miscellaneous | |
| Cables Included | Power cable 2 m |
| Compliant Standards | RoHS, REACH, TUV, EAC |
| Features | Firmware upgradable, LCD display, vertical orientation, 6 x 16 A circuit breakers |
| Networking | |
| Remote Management Interface | Ethernet, RS-485, USB |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | Power IEC 60309 |
| Input Voltage | AC 200-240/346-415 V |
| Input Wiring | 3-phase |
| Max Electric Current | 32 A |
| Output Voltage | AC 200-240 V |
| Power Capacity | 22 kW |
| Power Output Connectors Details |
|
