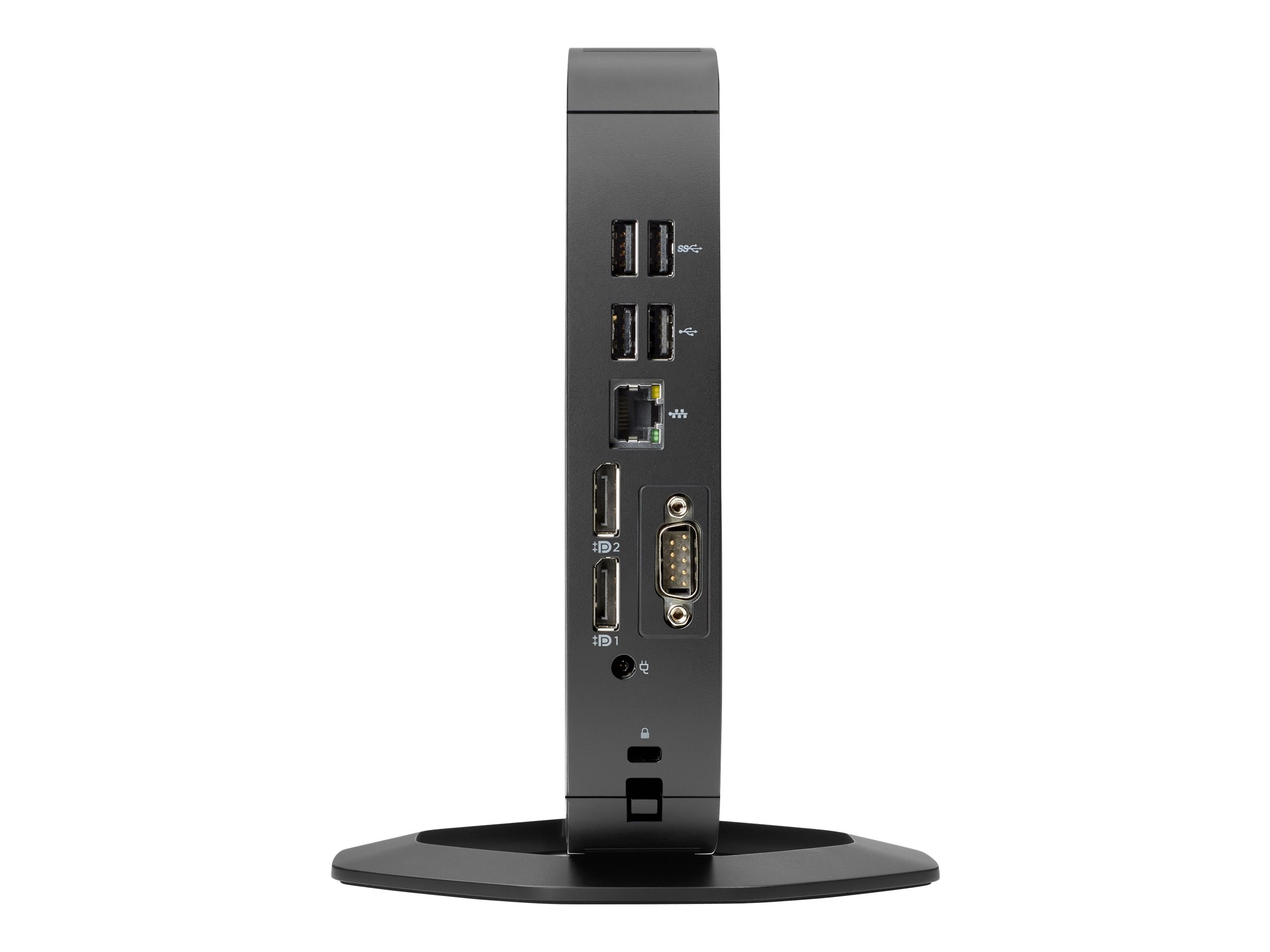

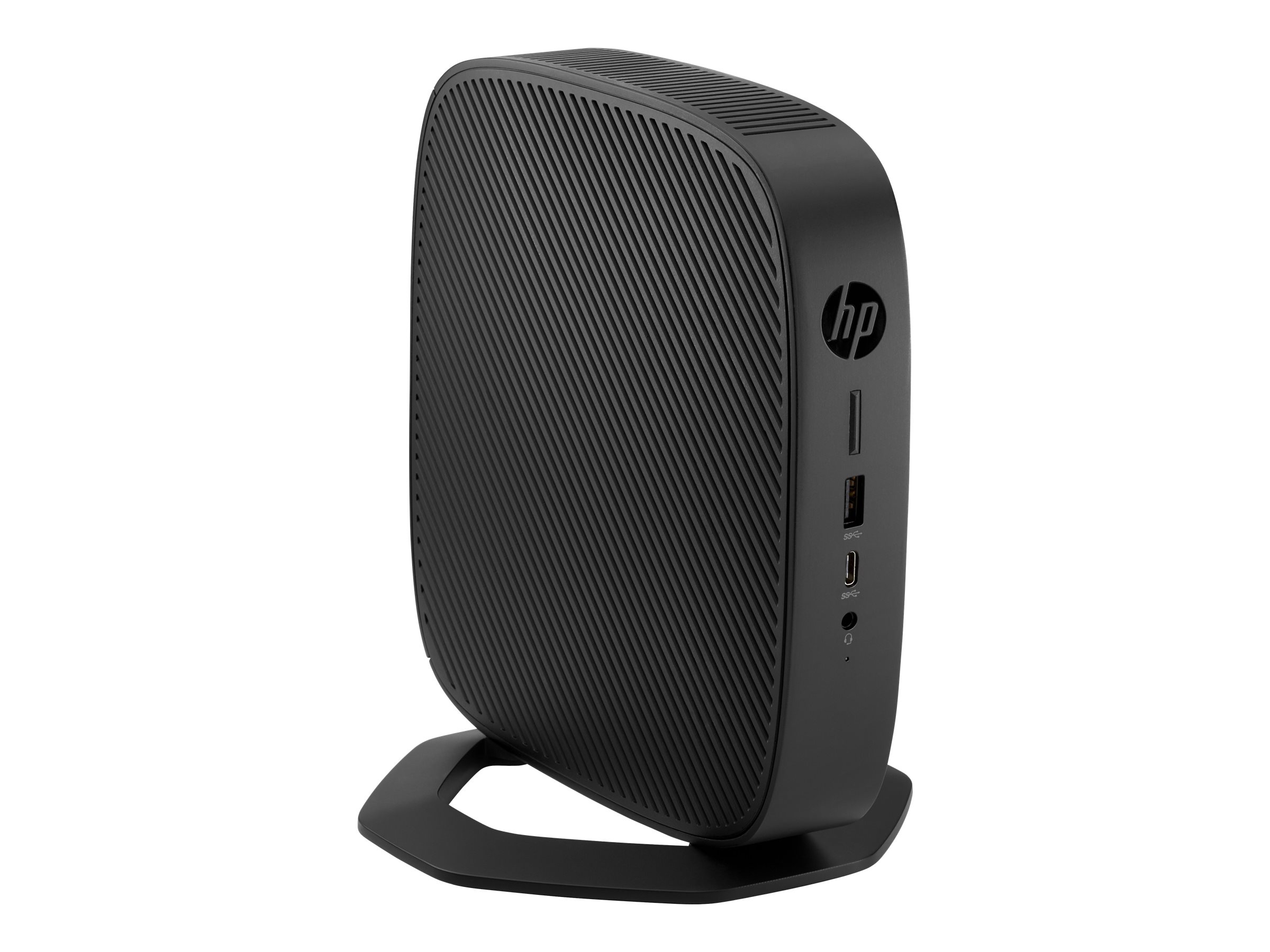

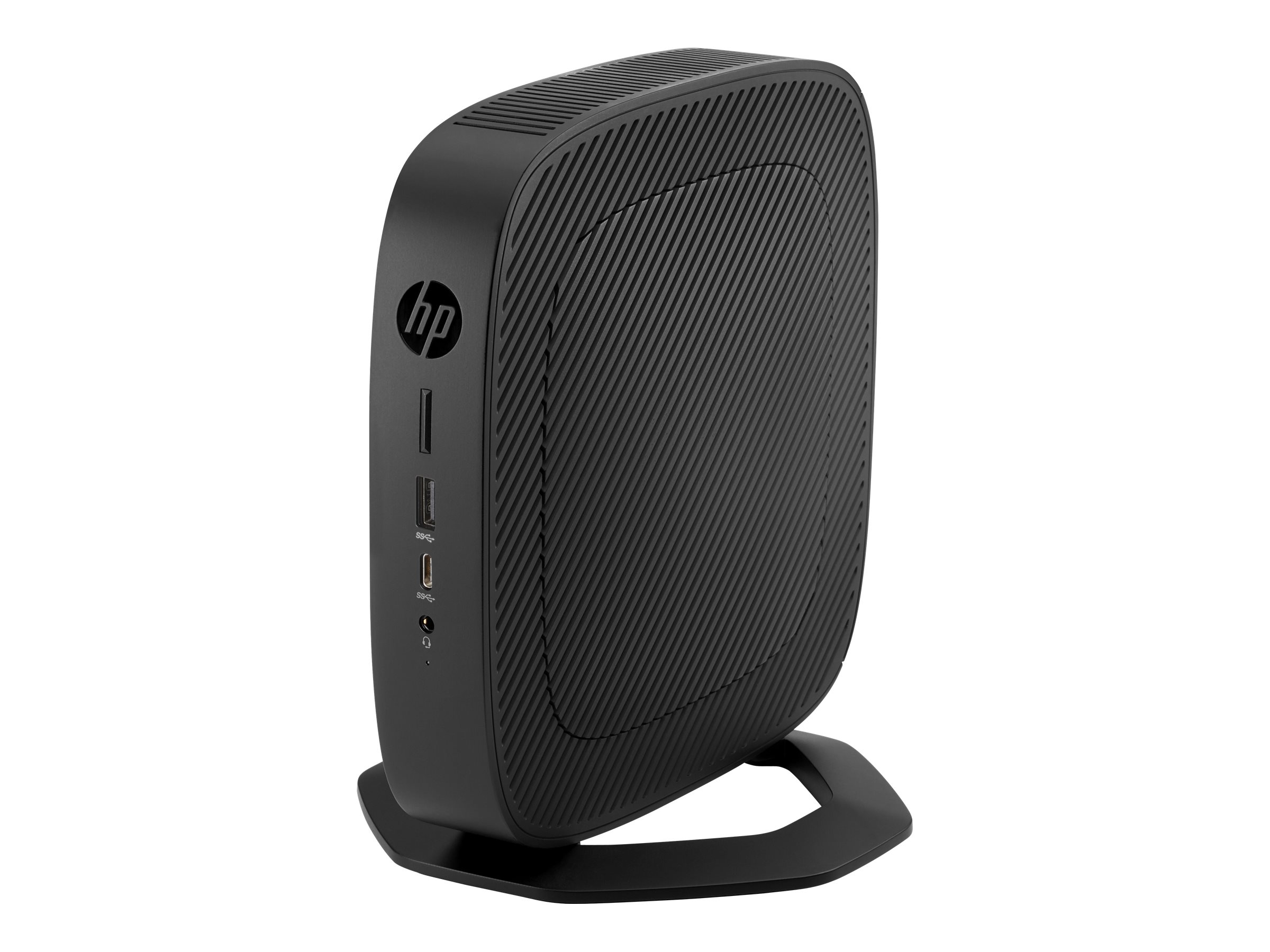

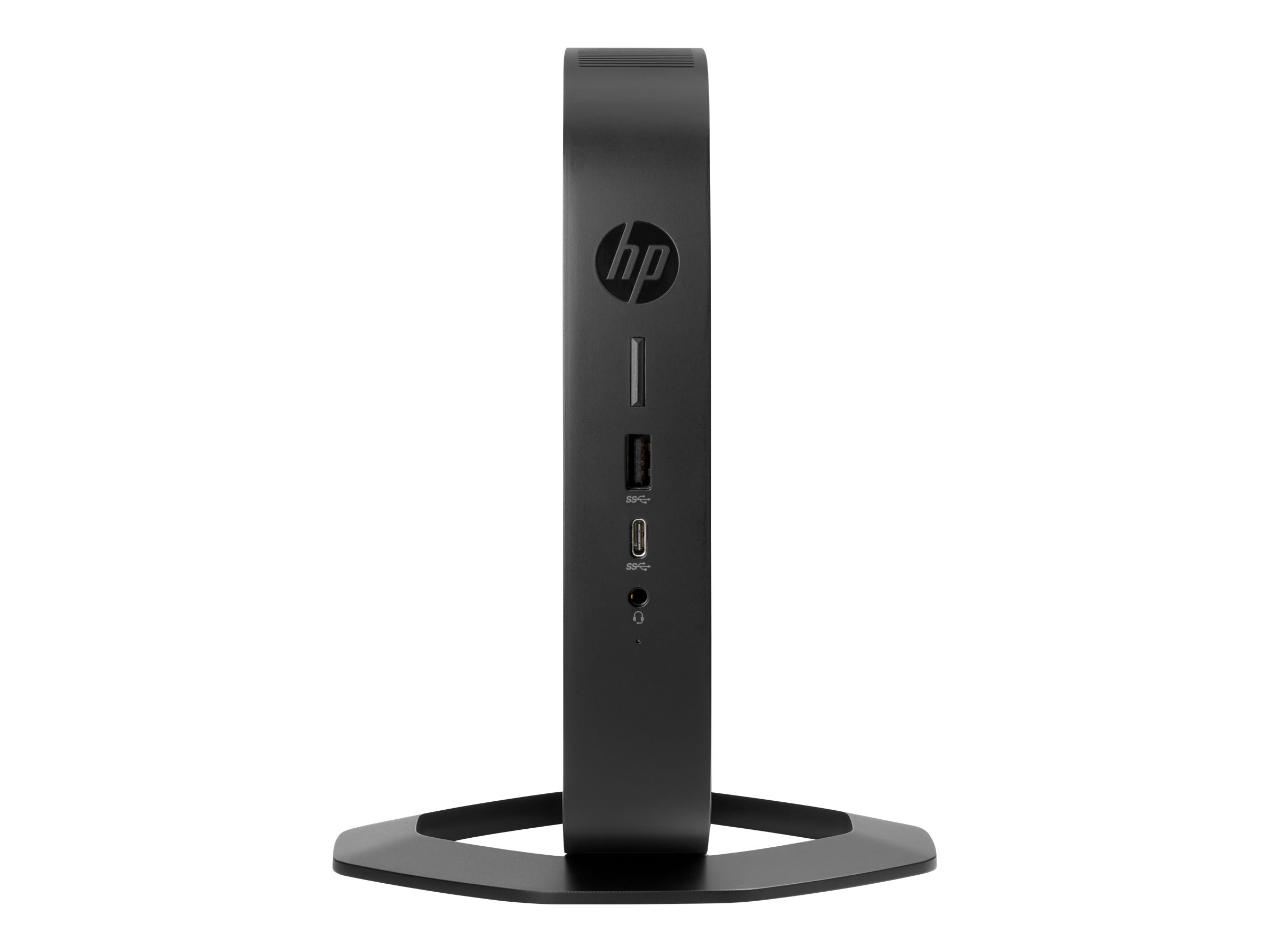

HP t540 - Thin client


Login for Price
Stock: n/a
HP t540 - Thin client

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • USFF
  • 1 x Ryzen Embedded R1305G / up to 2.8 GHz
  • RAM 8 GB
  • flash
  • eMMC 64 GB
HP t540 - Thin client
  • USFF
  • 1 x Ryzen Embedded R1305G / up to 2.8 GHz
  • RAM 8 GB
  • flash
  • eMMC 64 GB
  • Radeon Vega 3
  • Gigabit Ethernet
  • Win 10 IoT Enterprise for Thin Clients
  • monitor: none
  • keyboard: UK
  Additional Details
Mfr Part #: 12H31EA#ABU
SHI Part #: 43467466
Category: Thin client or diskless workstations
UNSPSC: 43211506
Manufacturer: HP, Inc.
Product Type: Hardware

Audio/Video Cables

HP - Display cable kit
  • DisplayPort (M) to DisplayPort (M)
  • 2 m
  • for Elite t655; Presence Small Space Solution with Zoom Rooms; Pro t550
£15.00
HP - DisplayPort cable
  • DisplayPort (M) to DisplayPort (M) (pack of 70)
  • for HP 260 G4, t540; Desktop Pro 300 G6; Elite Slice G2; EliteDesk 805 G6; ProDesk 40X G6
£931.00

Keyboards and Keypads

HP 655 - Keyboard and mouse set
  • wireless
  • 2.4 GHz
  • UK
  • black
  • for HP 34; Elite Mobile Thin Client mt645 G7; ZBook Firefly 14 G9; ZBook Fury 16 G9
MSRP £74.00 £48.00
HP Desktop 320MK - Keyboard and mouse set
  • UK
  • for HP 34; Elite Mobile Thin Client mt645 G7; EliteBook 830 G6
MSRP £35.00 £24.00
General Information
CategoryThin client or diskless workstations
DescriptionHP t540 - Thin client - USFF - 1 x Ryzen Embedded R1305G / up to 2.8 GHz - RAM 8 GB - flash - eMMC 64 GB - Radeon Vega 3 - Gigabit Ethernet - Win 10 IoT Enterprise for Thin Clients - monitor: none - keyboard: UK
ManufacturerHP, Inc.
MSRP£707.14
UNSPSC43211506
Main Specifications
Chassis / Form FactorUltra small form factor
Dimensions & Weight / Depth20 cm
Dimensions & Weight / Height20 cm
Dimensions & Weight / Weight1.4 kg
Dimensions & Weight / Width3.5 cm
Display / TypeNone.
Hard Drive / Capacity64 GB
Header / BrandHP
Header / Country KitsUnited Kingdom
Header / LocalizationEnglish
Miscellaneous / Product ColorBlack
Networking / Data Link Protocol
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Optical Storage / Drive TypeNo optical drive
Optical Storage / TypeNone
OS Provided / TypeWindows 10 IoT Enterprise for Thin Clients
Packaged Quantity1
Processor / Clock Speed1.5 GHz
Processor / ManufacturerAMD
Processor / Number of CoresDual-Core
Processor / Processor NumberR1305G
Processor / TypeRyzen Embedded
RAM / Data Integrity CheckNon-ECC
RAM / Form FactorSO-DIMM 260-pin
RAM / Memory Speed2400 MHz
RAM / TechnologyDDR4 SDRAM
Service & Support / Type3-year warranty
System / Hard Drive Capacity64 GB
System / TypeThin client
Video Output / Graphics ProcessorAMD Radeon Vega 3
Cache Memory
Cache Per Processor4 MB
Installed SizeL3 cache - 4 MB
Dimensions & Weight
Depth20 cm
Height20 cm
Weight1.4 kg
Width3.5 cm
Dimensions & Weight (Shipping)
Shipping Weight2.879 kg
Environmental Parameters
Max Operating Temperature40 °C
Min Operating Temperature10 °C
Expansion / Connectivity
Interfaces
  • 3 x USB 3.1 Gen 1 (1 front, 2 rear)
  • 1 x USB-C 3.1 Gen 1 (1 in front)
  • 2 x USB 2.0 (2 rear)
  • Headphones/microphone (1 in front)
  • 2 x DisplayPort
  • 1 x LAN (Gigabit Ethernet) - RJ-45
Slots1 (total) / 0 (free) x M.2 Card
General
Embedded SecurityTrusted Platform Module (TPM) Security Chip
LocalizationLanguage: English / region: United Kingdom
Product Form FactorUltra small form factor
TypeThin client
Graphics Controller
Graphics ProcessorAMD Radeon Vega 3
Video InterfacesDisplayPort
Hard Drive
Capacity1 x 64 GB
TypeFlash - eMMC
Input Device
TypeMouse, keyboard
Keyboard
InterfaceUSB
Keyboard NameHP USB Business Slim Keyboard
Localization & LayoutUK
Manufacturer Warranty
Service & SupportLimited warranty - parts and labor - 3 years
Miscellaneous
Compliant StandardsUL, VCCI, BSMI, GS, CB, CCC, FCC, KCC, WEEE, CISPR, ICES, ERP, CECP, RoHS2, SEPA, low halogen, EN
Included AccessoriesHP Smart AC Adapter
Security Slot TypeKensington security slot
Theft/Intrusion ProtectionSecurity lock slot (cable lock sold separately)
Monitor
Monitor TypeNone.
Mouse
InterfaceUSB
TechnologyOptical
Networking
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Ethernet ControllerRealtek RTL8111HSH
Operating System / Software
OS CertifiedHP ThinPro, HP Smart Zero Core, Windows 10 IoT Enterprise 2019 LTSC
OS ProvidedWindows 10 IoT Enterprise for Thin Clients English
Optical Storage
TypeNo optical drive
Power
Device TypePower adapter
Power Provided45 Watt
Voltage RequiredAC 120/230 V (50/60 Hz)
Processor / Chipset
Clock Speed1.5 GHz
CPUAMD Ryzen Embedded R1305G
CPU Qty1
CPU UpgradabilityNot upgradable
L2 cache2 x 512 KB
Max CPU Qty1
Max Turbo Speed2.8 GHz
Number of CoresDual-Core
RAM
Configuration Features1 x 8 GB
Effective Memory Speed2400 MHz
Form FactorSO-DIMM 260-pin
Installed Size8 GB / 16 GB (max)
Rated Memory Speed2400 MHz
Slots1 (total) / 0 (empty)
TechnologyDDR4 SDRAM - non-ECC
Sustainability Information
ENERGY STAR CertifiedYes
TCO CertifiedTCO Certified Desktops 9
