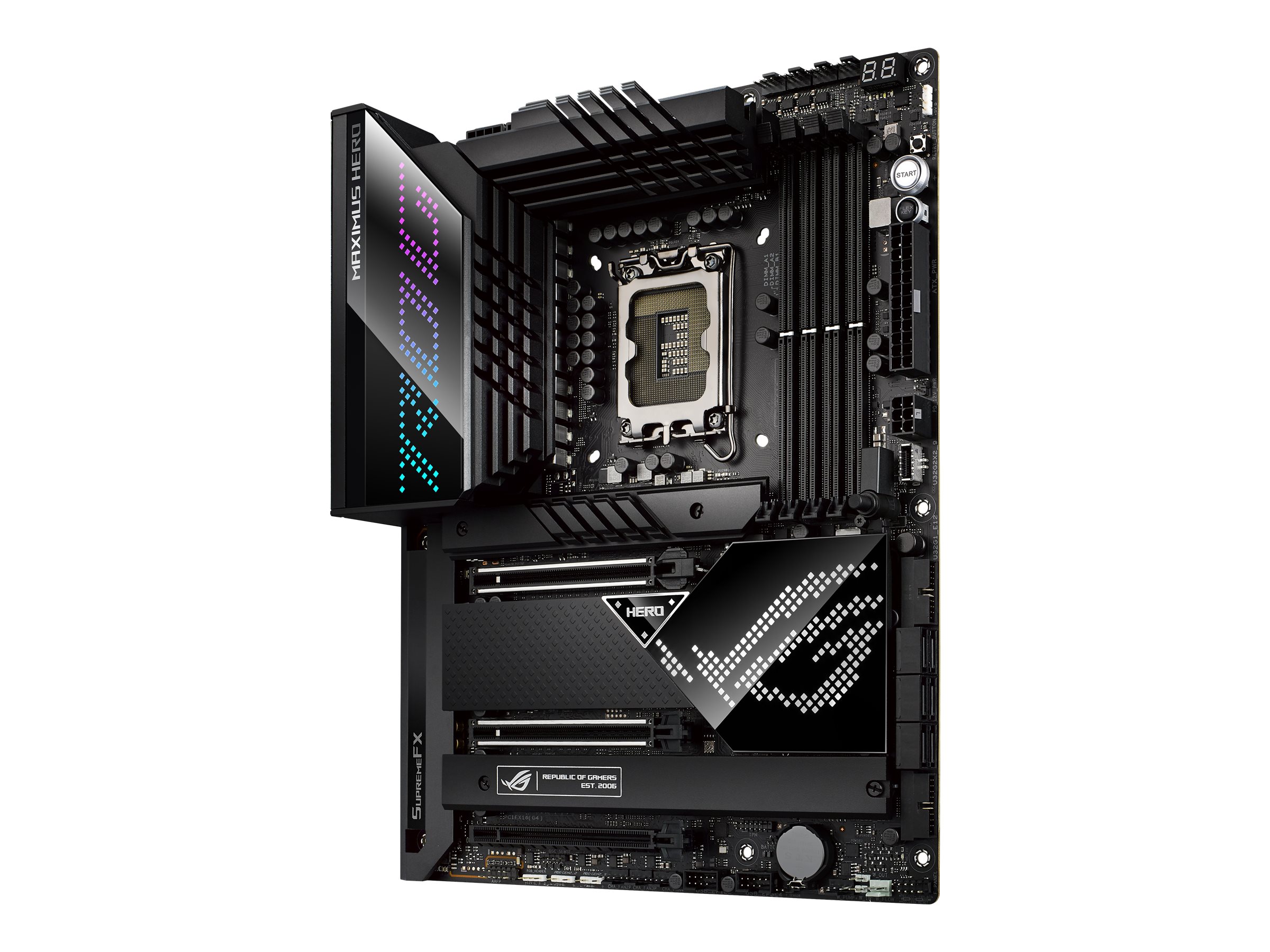

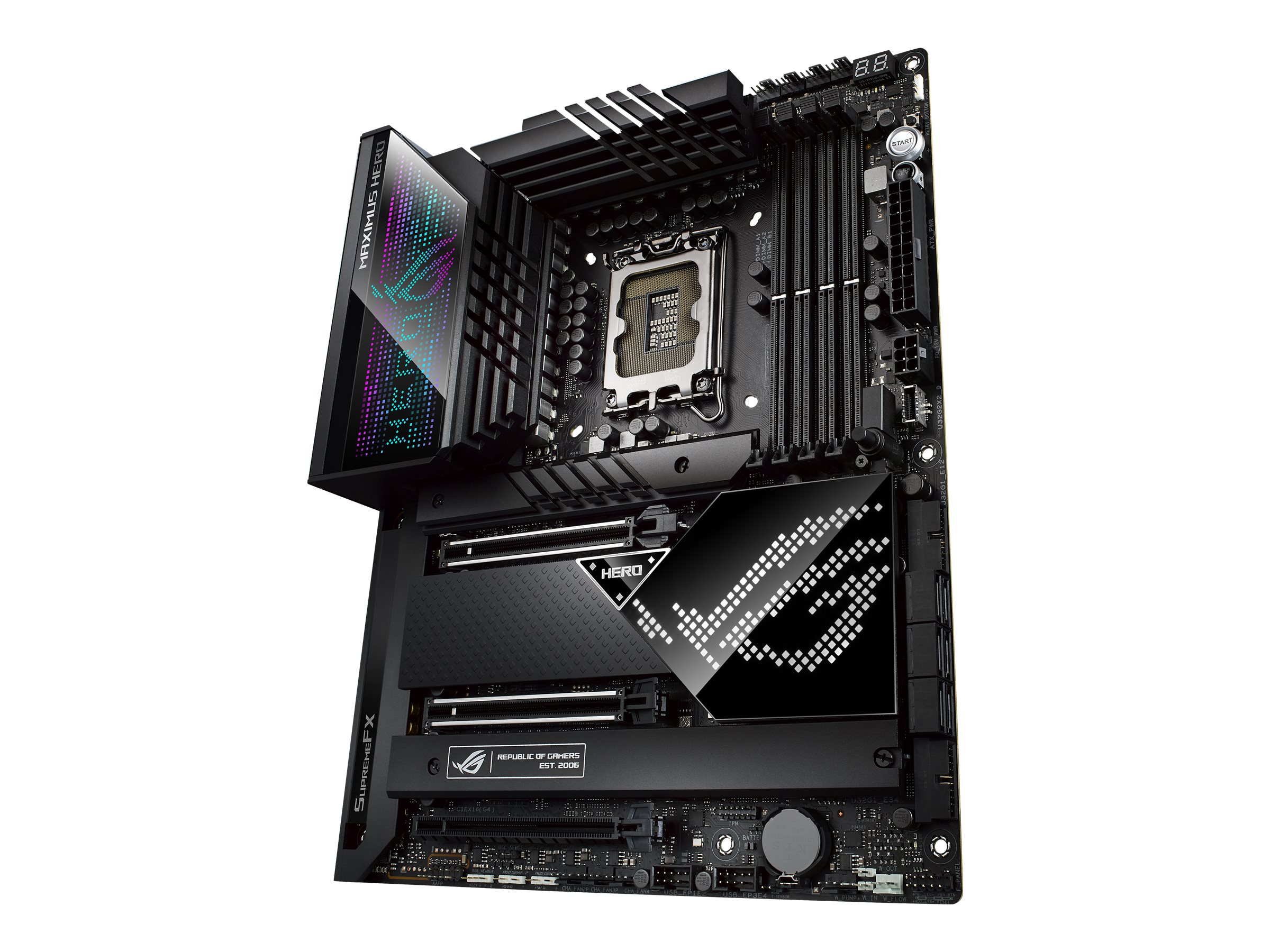

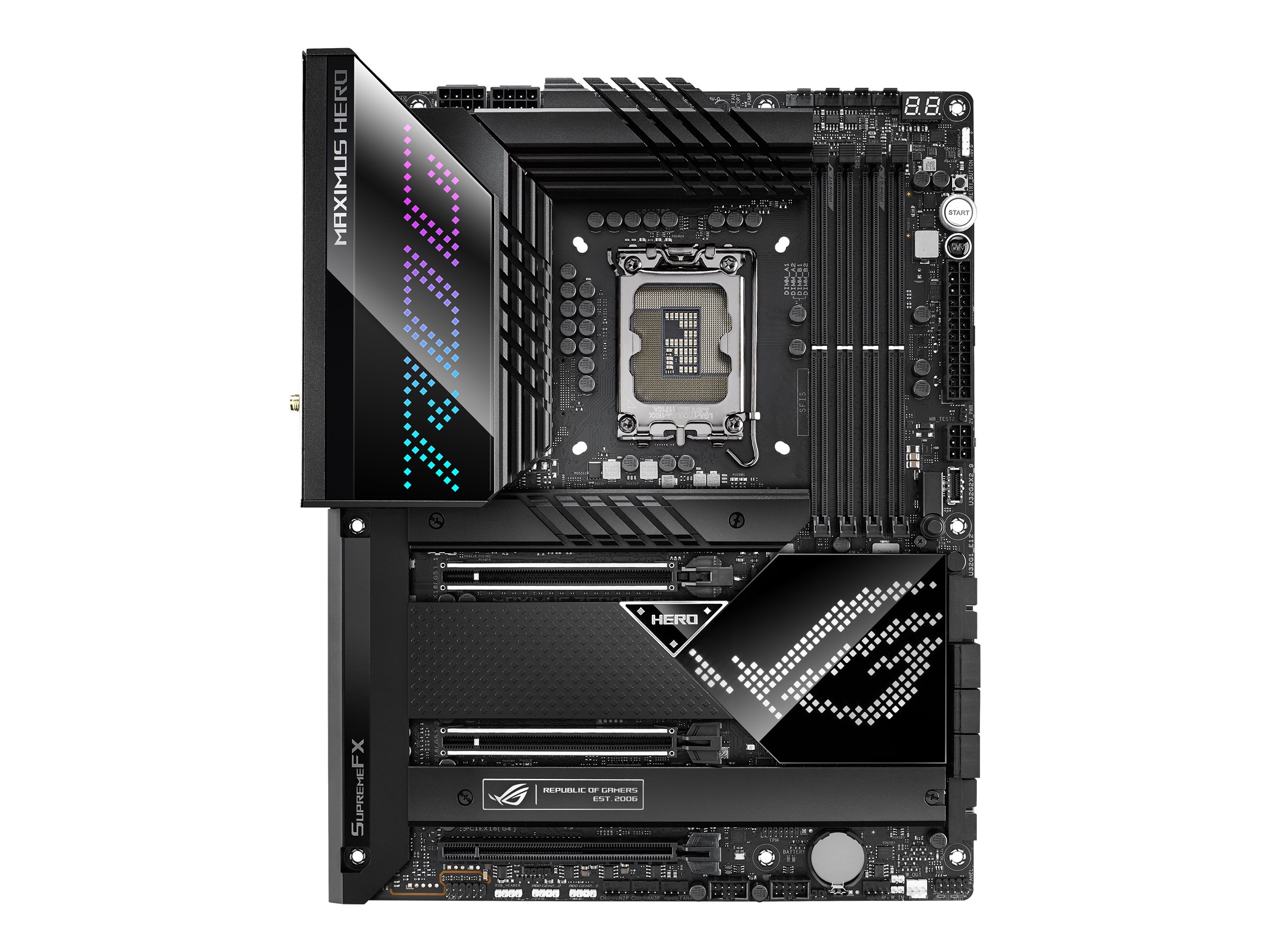

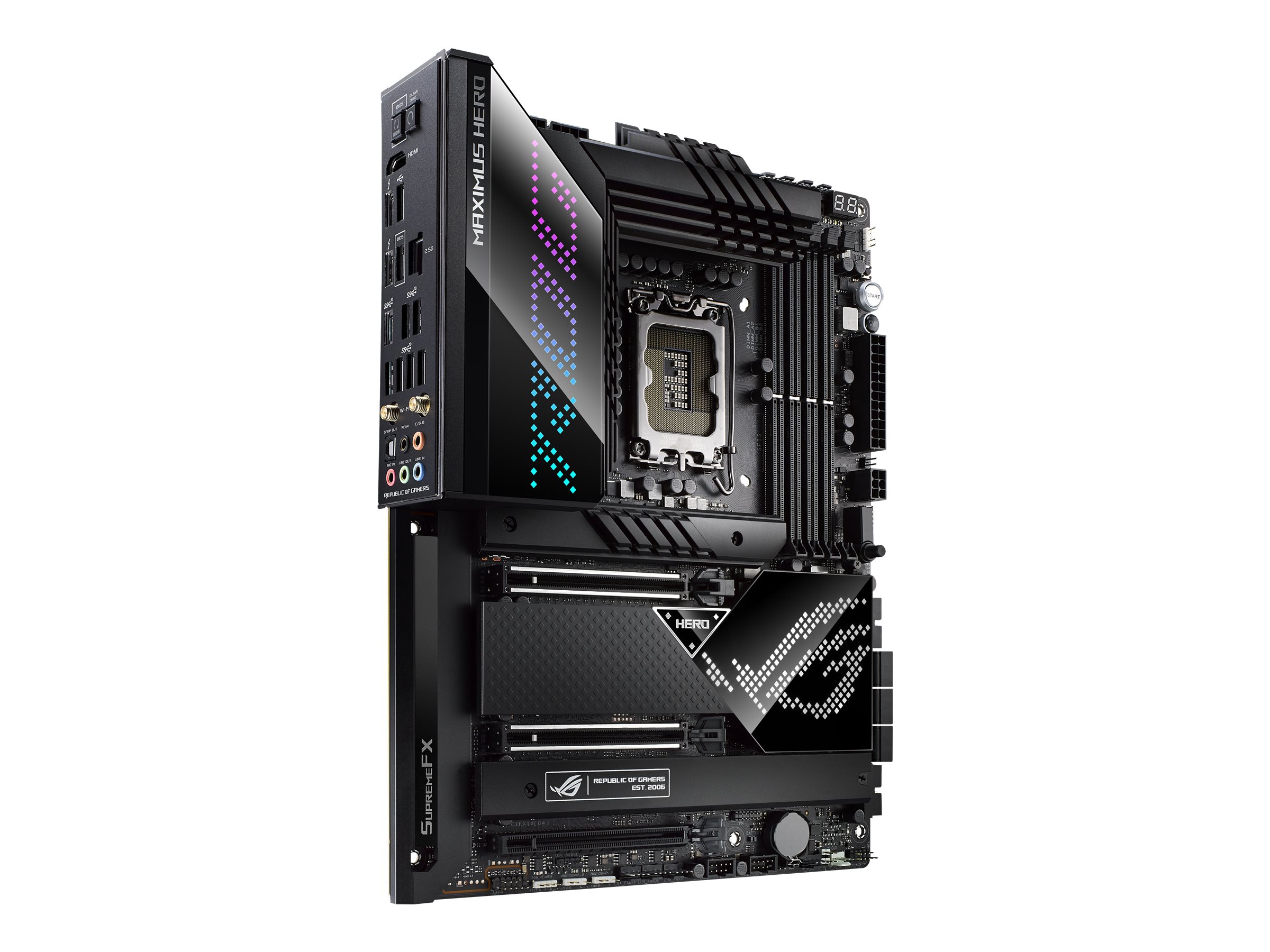

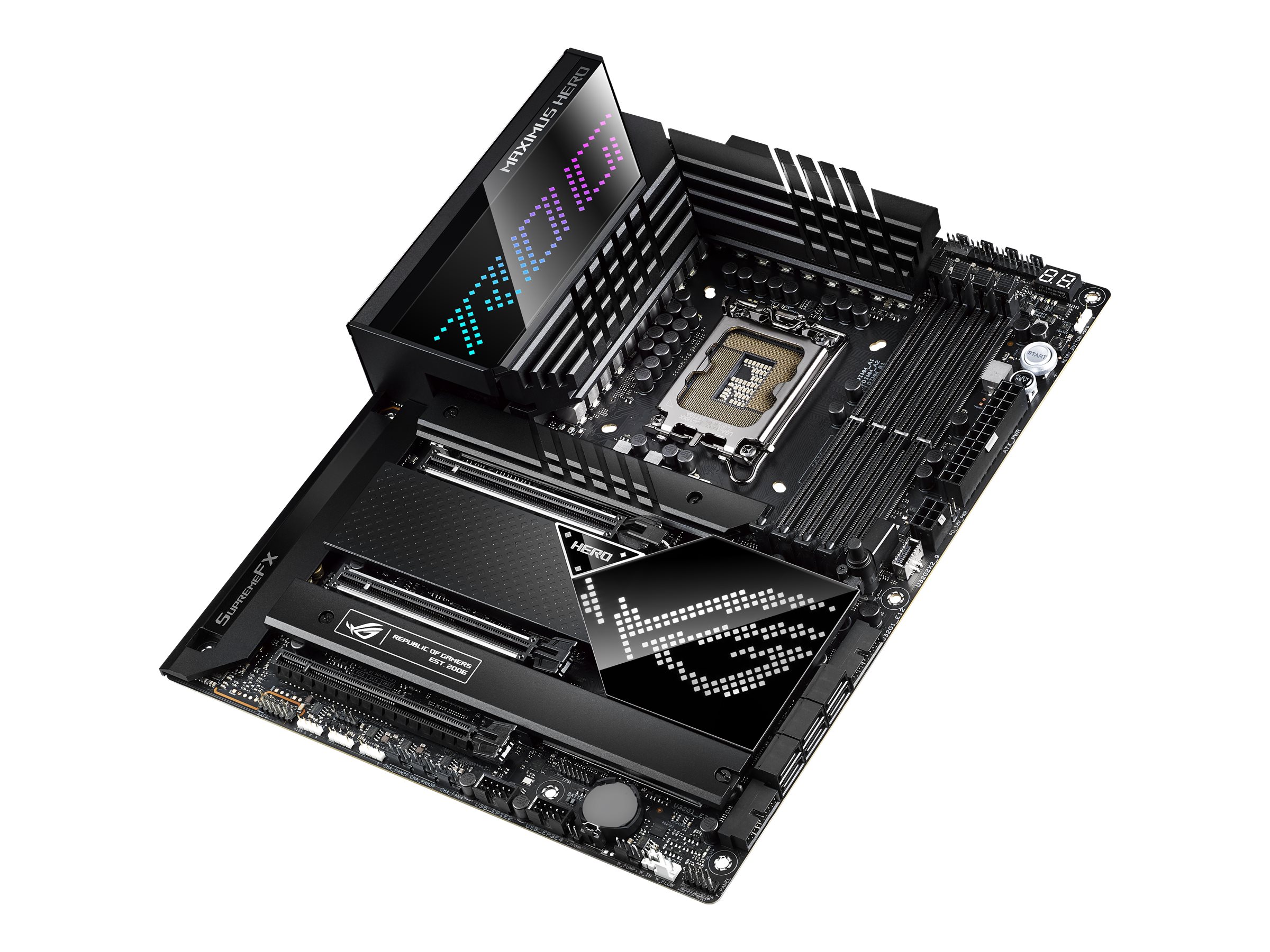

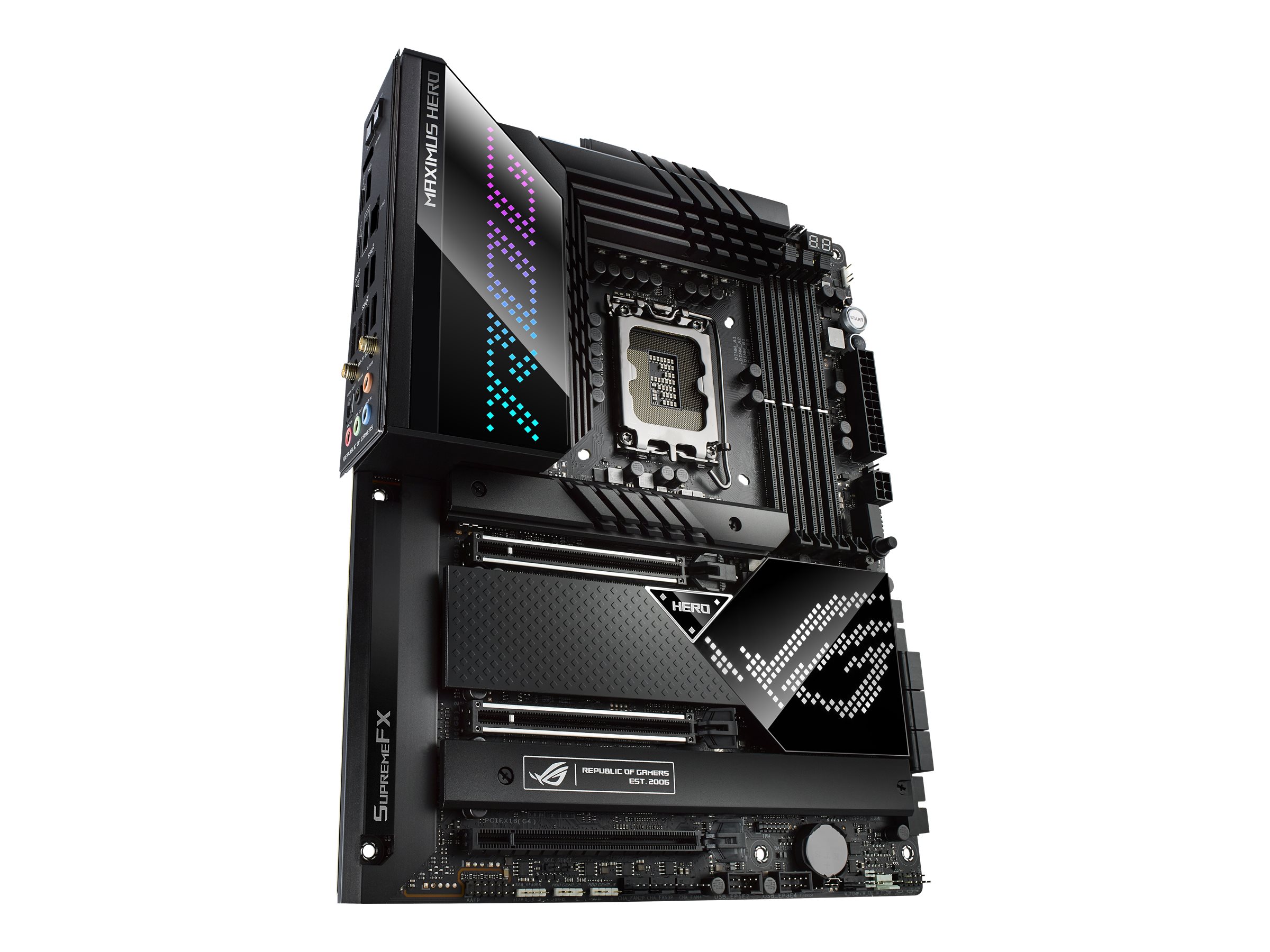

ASUS ROG MAXIMUS Z690 HERO


Login for Price
Stock: n/a
ASUS ROG MAXIMUS Z690 HERO

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Motherboard
  • ATX
  • LGA1700 Socket
  • Z690 Chipset
  • USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2, USB4
ASUS ROG MAXIMUS Z690 HERO
  • Motherboard
  • ATX
  • LGA1700 Socket
  • Z690 Chipset
  • USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2, USB4
  • 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth
  • onboard graphics (CPU required)
  • HD Audio (8-channel)
  Additional Details
Mfr Part #: ROG MAXIMUS Z690 HERO
SHI Part #: 43780414
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: ASUS
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionASUS ROG MAXIMUS Z690 HERO - Motherboard - ATX - LGA1700 Socket - Z690 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2, USB4 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
ManufacturerASUS
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth24.4 cm
Dimensions & Weight / Width30.5 cm
Header / BrandASUS
Mainboard / Chipset TypeIntel Z690
Mainboard / Processor SocketLGA1700 Socket
Networking / Data Link Protocol
  • 2.5 Gigabit Ethernet
  • Bluetooth 5.2
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6E)
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Packaged Quantity1
Video Output / TypeGraphics adapter (CPU required)
Audio
Audio CodecSupremeFX (ALC4082)
Compliant StandardsHigh Definition Audio, DTS Sound Unbound
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 4 x DIMM 288-pin
  • 2 x PCIe 5.0 x16 (dual x8 mode; single card: x16 mode)
  • 1 x PCIe 4.0 x16 (x4 mode)
Interfaces
  • 2 x Thunderbolt 4/USB4
  • 1 x HDMI
  • 6 x USB 3.2 Gen 2
  • 1 x USB-C Gen2
  • 2 x USB 2.0
  • 1 x audio line-out (center/subwoofer) - mini-jack
  • 1 x audio line-out (rear) - mini-jack
  • 1 x audio line-out - mini-jack
  • 1 x microphone - mini-jack
  • 1 x TOSLINK
  • 1 x audio line-in - mini-jack
Internal Interfaces
  • 4 x USB 2.0 - header
  • 1 x USB-C Gen 2x2 - header
  • 4 x USB 3.2 Gen 1 - header
  • 1 x audio - header
Power Connectors24-pin main power connector, 6-pin ATX12V connector, 2 x 8-pin ATX12V connectors
RAID FeaturesIntel Rapid Storage Technology
Storage Interfaces
  • SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 5
  • SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
  • PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
  • SATA-600 -connectors: 2 x 7pin Serial ATA
  • PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
Features
BIOS FeaturesBIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3, MemTest86
BIOS TypeAMI
Hardware FeaturesJack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, ASUS Q-Connector, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS ROG Extreme OC, Q-Code, SupremeFX Shielding technology, ASUS DIGI+ Power Control, Gold Plated Audio Hardware, Preboot eXecution Environment (PXE), Clear CMOS Button, LANGuard, ASUS Fan Xpert 4, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, M.2 heatsink, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, Armoury Crate, ESS 9018 SABRE HiFi DAC, FlexKey button, ASUS ProCool II, GameFirst VI, ASUS HYDRANODE, 20+1 Phase Power Design, M.2 Q-Latch, SafeDIMM
Sleep / Wake UpWake on LAN (WOL), wake on PME
General
Chipset TypeIntel Z690
Compatible Processors(supports 12th Generation Intel Core / Pentium Gold / Celeron)
Max Processors Qty1
Processor SocketLGA1700 Socket
Product TypeMotherboard - ATX
LAN
Network Interfaces2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Miscellaneous
Cables Included4 x Serial ATA cable
Depth24.4 cm

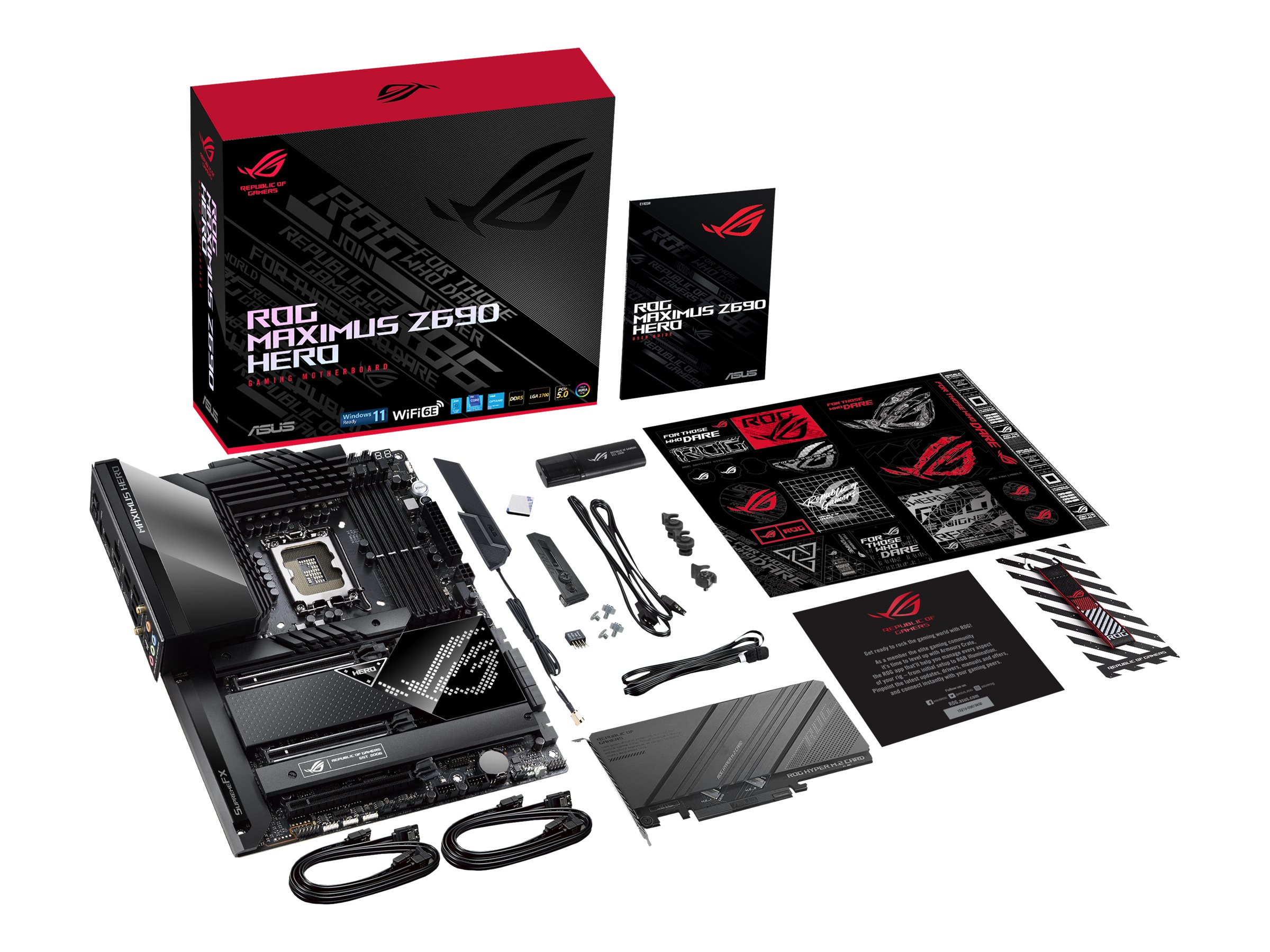

Included AccessoriesROG fan stickers, 2 x M.2 screws, RGB (RGBW) LED strip extension cable, ROG thank you card, Q-Connector, ROG key chain, 1 x M.2 rubber package, USB drive, ARGB LED strip extension cable, graphics card holder
Software IncludedDrivers & utilities, ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, WinRAR, Sonic Studio Virtual Mixer, BullGuard Internet Security (1 year license), ROG GameFirst VI, ASUS AURA Creator, AIDA64 Extreme (1 year license), MyAsus
Width30.5 cm
Supported RAM
Bus Clock5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.)
FeaturesDual channel memory architecture
Max Size128 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckNon-ECC
TechnologyDDR5
