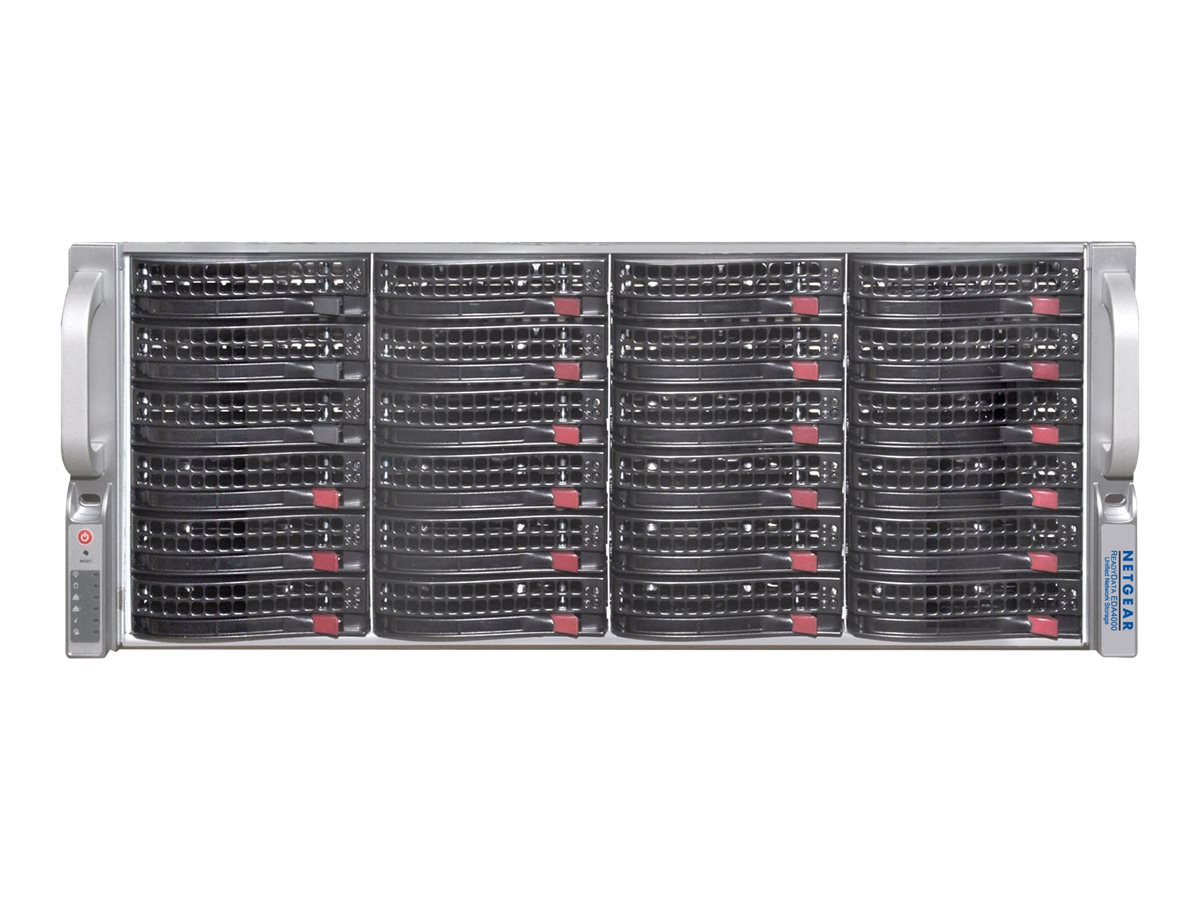

NETGEAR ReadyDATA 4U Expansion Chassis EDA4000
Stock: n/a
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
NETGEAR ReadyDATA 4U Expansion Chassis EDA4000
- Hard drive array
- 24 bays (SATA-300 / SAS)
- SAS (external)
- rack-mountable
- 4U
| Additional Details | |
|---|---|
| Mfr Part #: | EDA4000-100WWS |
| SHI Part #: | 26016007 |
| Category: | Disk arrays |
| UNSPSC: | 43201802 |
| Manufacturer: | NETGEAR |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Disk arrays |
| Description | NETGEAR ReadyDATA 4U Expansion Chassis EDA4000 - Hard drive array - 24 bays (SATA-300 / SAS) - SAS (external) - rack-mountable - 4U |
| Manufacturer | NETGEAR |
| UNSPSC | 43201802 |
| Main Specifications | |
| Dimensions & Weight / Depth | 66 cm |
| Dimensions & Weight / Height | 17.8 cm |
| Dimensions & Weight / Width | 43.7 cm |
| Header / Brand | NETGEAR |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Storage / HDD Array External Interface | Serial Attached SCSI |
| Storage / HDD Array External Interface Class | Serial Attached SCSI |
| Storage / Rack-mountable | Rack-mountable |
| Storage / Type | Hard drive array |
| Chassis | |
| Installed Devices / Modules Qty | 0 |
| Supported Devices / Modules Qty | 24 |
| Supported Drives | SATA-300 / SAS |
| Dimensions & Weight | |
| Depth | 66 cm |
| Height | 17.8 cm |
| Width | 43.7 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Expansion Bays | 24 (total) / 24 (free) x hot-swap |
| General | |
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 4U |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Compliant Standards | VCCI, C-Tick, CCC, FCC, RoHS, KCC |
| Power | |
| Max Supported Qty | 2 |
| Power Device | 2 x internal power supply - hot-plug |
| Power Provided | 700 Watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V - 50 - 60 Hz |
| Storage | |
| HDD Array External Interface | SAS |
| Max Supported Capacity | 72 TB |
| Storage Controller | |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Type | RAID - integrated (SATA-300 / SAS) |
