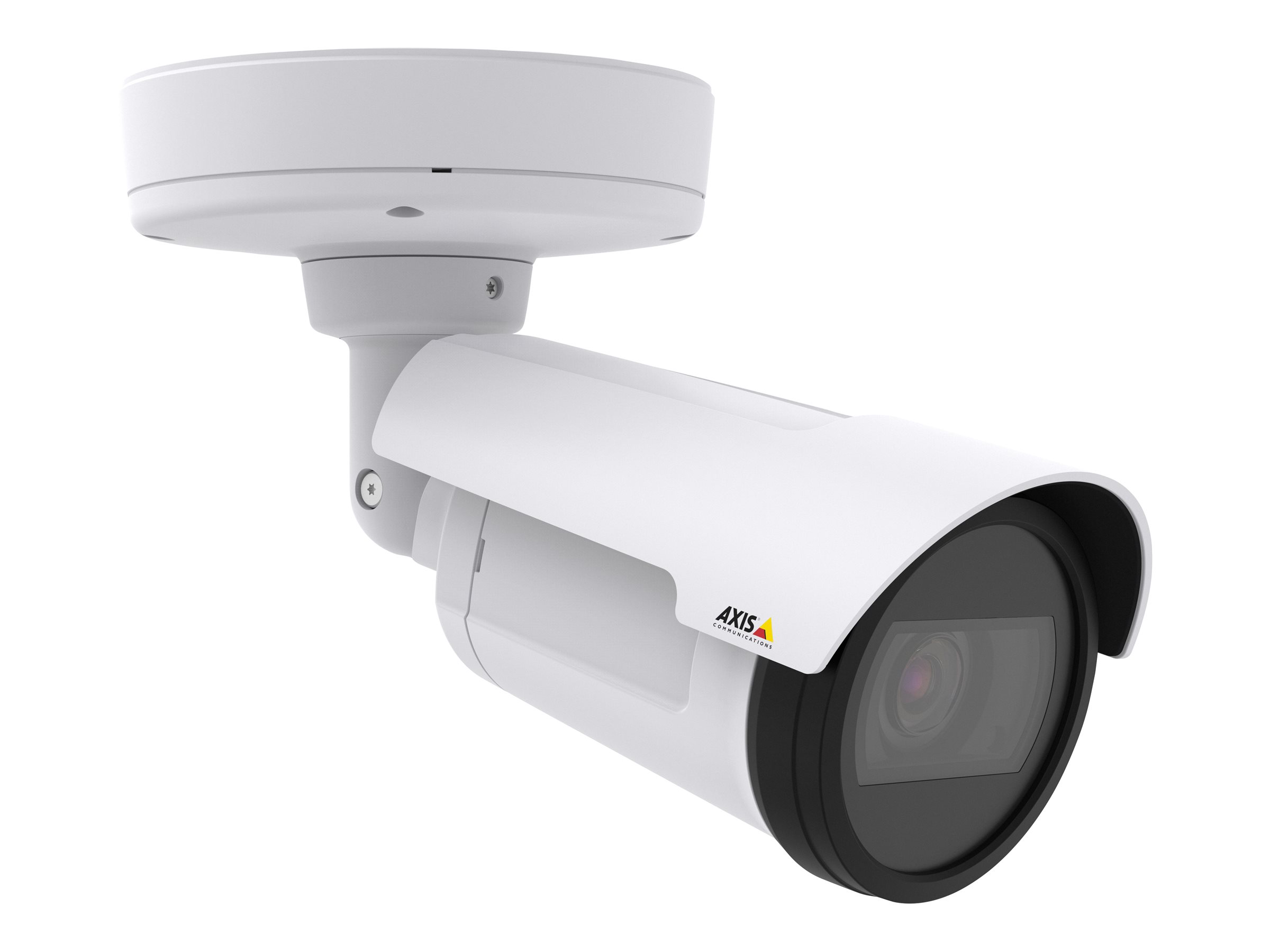

AXIS P1435-LE - Network surveillance camera
Stock: n/a
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
AXIS P1435-LE - Network surveillance camera
- outdoor
- weatherproof
- color (Day&Night)
- 1920 x 1080
- 1080/60p
- auto iris
- vari-focal
- LAN 10/100
- MPEG-4, MJPEG, H.264
- PoE
| Additional Details | |
|---|---|
| Mfr Part #: | 0777-001 |
| SHI Part #: | 31454091 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | Axis Communications |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | AXIS P1435-LE - Network surveillance camera - outdoor - weatherproof - color (Day&Night) - 1920 x 1080 - 1080/60p - auto iris - vari-focal - LAN 10/100 - MPEG-4, MJPEG, H.264 - PoE |
| Manufacturer | Axis Communications |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 26 cm |
| Dimensions & Weight / Height | 13.2 cm |
| Dimensions & Weight / Weight | 800 g |
| Dimensions & Weight / Width | 13.2 cm |
| Header / Brand | Axis |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Camera | |
| Digital Video Format | MPEG-4, MJPEG, H.264 |
| Exposure Range | 2 sec - 1/66500 sec |
| Features | Manual white balance, Backlight Compensation (BLC), sharpness control, digital image rotation, white balance, color control, progressive scanning, brightness control, Power over Ethernet, Wide Dynamic Range (WDR), AXIS Video Hosting System (AVHS), ONVIF support, infrared cut filter, Privacy Mask Function, Video Motion Detection Technology, digital PTZ function, Text Caption Overlay, password protection, OptimizedIR, Zipstream technology |
| Flash Memory | 256 MB |
| Infrared Distance | 30 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 512 MB |
| Type | Color - Day&Night - fixed - outdoor - weatherproof |
| Video Capture |
|
| Video Modes | 1080/60p |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -30 °C |
| Relative Humidity (operating) | 10 - 100% |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Connectivity Technology | Wired |
| Depth | 26 cm |
| Device Type | Network surveillance camera |
| Height | 13.2 cm |
| Weight | 800 g |
| Width | 13.2 cm |
| Image Sensor | |
| Type | CMOS 1/2.8" |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SFTP |
| Lens Construction | |
| Focal Length | 3 mm - 10.5 mm |
| Focus Adjustment | Automatic |
| Horizontal Field of View (degree) | 35 - 95 |
| Lens Iris | F/1.4 auto iris (P-Iris) |
| Optical Zoom | 3.5 x |
| Type | Vari-focal |
| Vertical Field of View (degree) | 20 - 51 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | EN55024, IEC 60529 IP66, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, FCC Part 15 B, NEMA Type 4X, EN 61000-6-2, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60068-2-27, IEC 60068-2-6, IP66, IEC 60068-2-1, IEC 60068-2-2, EN 50121-4, IEC 62236-4, VCCI Class B, KN24, RCM, IEC 60950-22, EN 60950-22, UL 60950-22, KCC KN22 Class B, AS/NZS CISPR 22 Class B |
| Included Accessories | Mounting bracket |
| Power | |
| Power Device | 11 Watt |
| Power Requirements | PoE |
