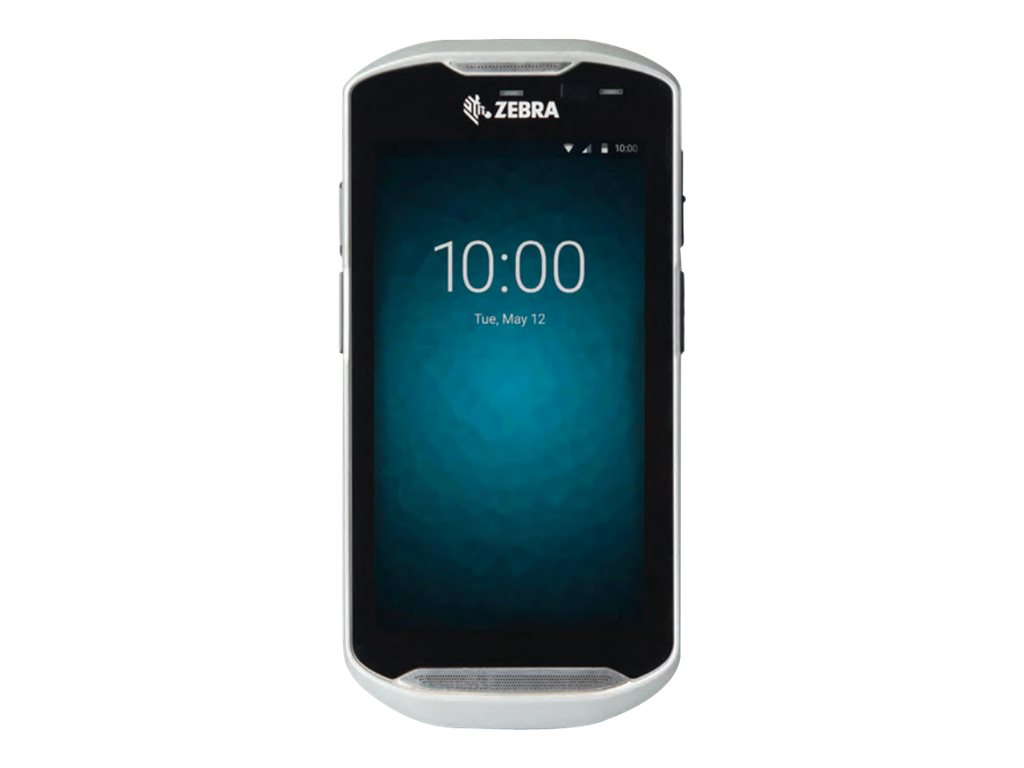

Zebra TC56 - Data collection terminal
Stock: n/a
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Zebra TC56 - Data collection terminal
- rugged
- Android 6.0 (Marshmallow)
- 32 GB
- 5" (1280 x 720)
- rear camera
- barcode reader
- (2D imager)
- USB host
- microSD slot
- Wi-Fi, Bluetooth
- 4G
- LTE
| Additional Details | |
|---|---|
| Mfr Part #: | TC56CJ-1PAZU4P-A6 |
| SHI Part #: | 32937178 |
| Category: | PDAs or pen-based computers |
| UNSPSC: | 43211504 |
| Manufacturer: | Zebra Technologies |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | PDAs or pen-based computers |
| Description | Zebra TC56 - Data collection terminal - rugged - Android 6.0 (Marshmallow) - 32 GB - 5" (1280 x 720) - rear camera - barcode reader - (2D imager) - USB host - microSD slot - Wi-Fi, Bluetooth - 4G - LTE |
| Manufacturer | Zebra Technologies |
| UNSPSC | 43211504 |
| Main Specifications | |
| Audio Input / Type | Two microphones |
| Barcode / Barcode Reader | Yes |
| Dimensions & Weight / Depth | 1.86 cm |
| Dimensions & Weight / Height | 15.5 cm |
| Dimensions & Weight / Weight | 249 g |
| Dimensions & Weight / Width | 7.55 cm |
| Display / Diagonal Size | 5 in |
| Display / Diagonal Size (metric) | 12.7 cm |
| Display / Native Resolution | 1280 x 720 |
| GPS System / Navigation | A-GPS/Navstar/GLONASS/Gallileo/BeiDou receiver |
| Handheld Type | Data collection terminal |
| Header / Brand | Zebra |
| Header / Country Kits |
|
| Input Device / Type | Touchscreen |
| Miscellaneous / Product Color | Black |
| Networking / Wireless Connectivity |
|
| OS Provided / Type | Android 6.0 (Marshmallow) |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 1.8 GHz |
| Processor / Type | Snapdragon 650 |
| Service & Support / Type | 1-year warranty |
| Barcodes | |
| Barcode Reader | Yes |
| Barcodes | Code 39 |
| Max Working Distance | 81.3 cm |
| Minimum Bar Width | 3 mil |
| Scan Element Type | 2D imager |
| Battery | |
| Capacity | 4300 mAh |
| Run Time | Up to 14 hours |
| Technology | PowerPrecision+ - lithium ion |
| Communications | |
| Cellular Protocols | GSM, GPRS, UMTS, EDGE, HSPA, HSPA+, LTE |
| Cellular Technology | 3G, 4G |
| Security Protocols & Features | LEAP, WEP, WPA, WPA2, TTLS, EAP-TLS, PEAP, EAP-FAST, CCKM |
| Wireless Connectivity | 802.11a/b/g/n/ac (draft), Bluetooth 4.1 |
| Dimensions & Weight | |
| Depth | 1.86 cm |
| Height | 15.5 cm |
| Weight | 249 g |
| Width | 7.55 cm |
| Display | |
| Features | Corning Gorilla glass, outdoor viewable, glove touch mode |
| Resolution | 1280 x 720 |
| Touchscreen | Multi-Touch |
| Type | 5" - LED backlight |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 85% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | -10 °C |
| Min Storage Temperature | -40 °C |
| Expansion and Connectivity | |
| Expansion Slots |
|
| Interfaces | 1 x USB-C |
| USB Host | Yes |
| General | |
| Operating System | Android 6.0 (Marshmallow) |
| Product Type | Data collection terminal - rugged |
| Input Device | |
| Type | Touchscreen |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Memory | |
| Max Supported Capacity | 128 GB |
| RAM | 4 GB |
| Storage | 32 GB |
| Supported Flash Memory Cards | microSD, microSDHC, microSDXC |
| Miscellaneous | |
| Compliant Standards | Bluetooth Class 2, MIL-STD 810G |
| Features | Audible alarm, LED indicator, capacitive touch screen, MIMO technology, Miracast, light sensor, vibration |
| Localization | Canada, Latin America |
| Sensors | Proximity sensor, 3-axis gyro sensor, electromagnetic compass, 3-axis accelerometer |
| Vibrating Alert | Yes |
| Multimedia | |
| Audio | Two microphones, speaker |
| Navigation System | |
| Receiver | A-GPS/Navstar/GLONASS/Gallileo/BeiDou receiver |
| Processor | |
| 64-bit Computing | Yes |
| Number of Cores | 6-core |
| Processor | Qualcomm Snapdragon 650 |
| Processor Clock Speed | 1.8 GHz |
| Rear Camera | |
| Focus Adjustment | Automatic |
| Sensor Resolution | 13 Megapixel |
| RFID | |
| RFID Specification | ISO 15693, ISO 14443 |
| Software | |
| Preloaded Software | Google Mobile Services |
