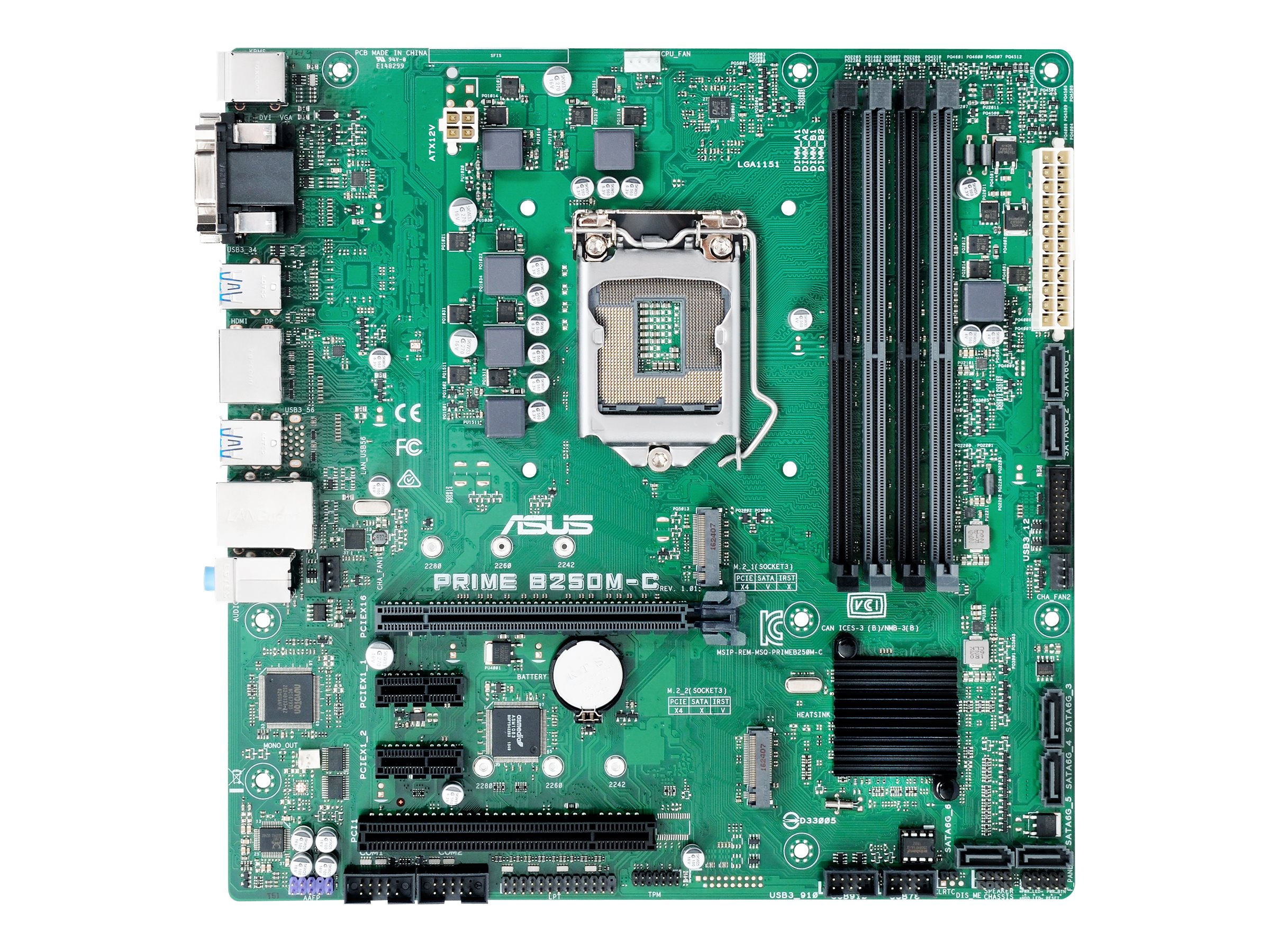

ASUS PRIME B250M-C - Motherboard


Login for Price
Stock: n/a
ASUS PRIME B250M-C - Motherboard

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • micro ATX
  • LGA1151 Socket
  • B250 Chipset
  • USB 3.0
  • Gigabit LAN
ASUS PRIME B250M-C - Motherboard
  • micro ATX
  • LGA1151 Socket
  • B250 Chipset
  • USB 3.0
  • Gigabit LAN
  • onboard graphics (CPU required)
  • HD Audio (8-channel)
  Additional Details
Mfr Part #: PRIME B250M-C
SHI Part #: 33227052
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: ASUS
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionASUS PRIME B250M-C - Motherboard - micro ATX - LGA1151 Socket - B250 Chipset - USB 3.0 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
ManufacturerASUS
MSRP£85.57
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth24.4 cm
Dimensions & Weight / Width24.4 cm
Header / BrandASUS
Mainboard / Chipset TypeIntel B250
Mainboard / Compatible Processors
  • Celeron
  • Core i3
  • Core i5
  • Core i7
  • Pentium
Mainboard / Processor SocketLGA1151 Socket
Networking / Data Link Protocol
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Packaged Quantity1
Video Output / TypeGraphics adapter (CPU required)
Audio
Audio CodecRealtek ALC887
Compliant StandardsHigh Definition Audio
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 4 x DIMM 288-pin
  • 1 x PCIe 3.0 x16
  • 2 x PCIe 3.0 x1
  • 1 x PCI

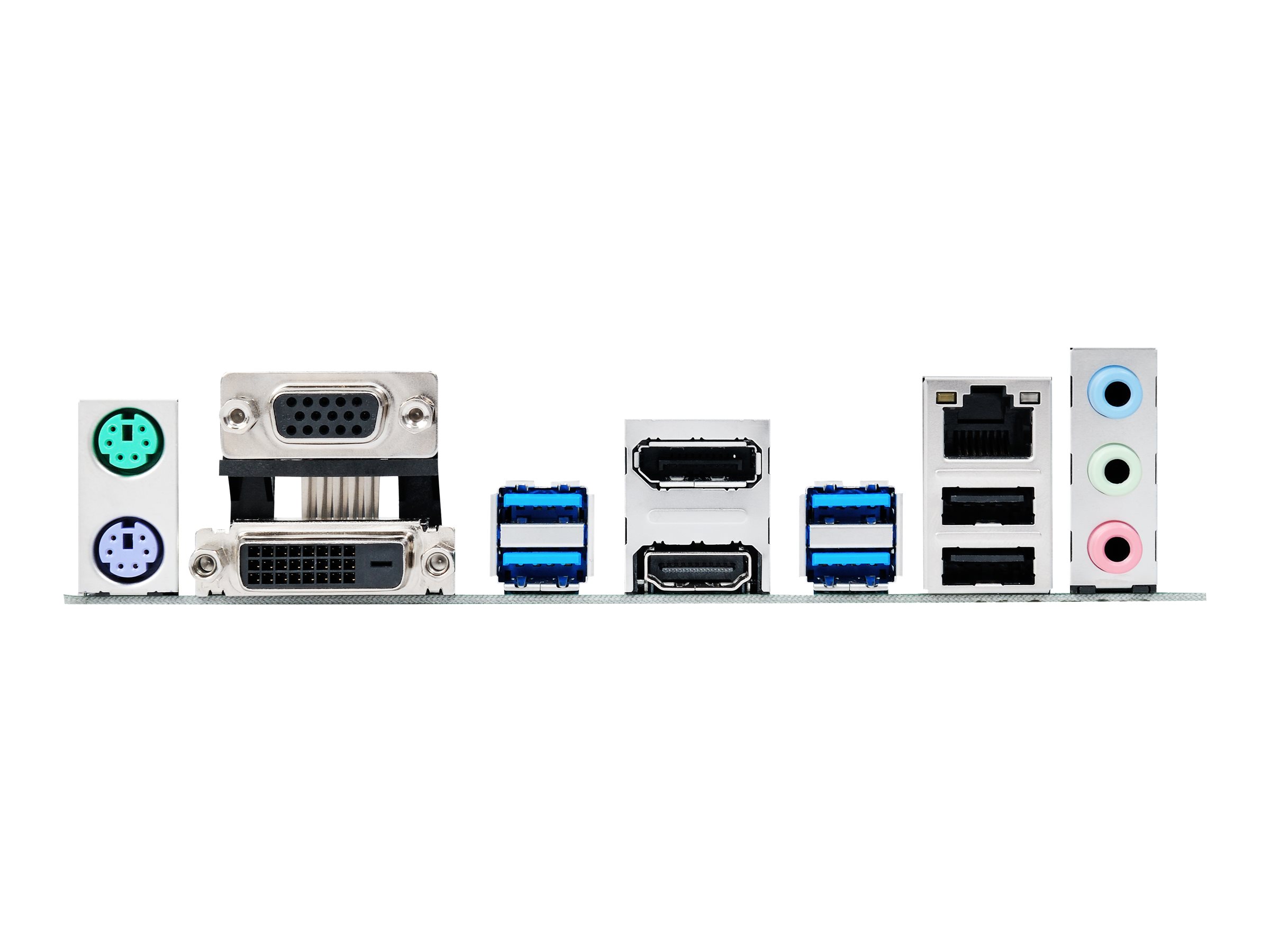

Interfaces
  • 1 x HDMI
  • 1 x DisplayPort
  • 1 x LAN (Gigabit Ethernet)
  • 4 x USB 3.0
  • 2 x USB 2.0
  • 1 x PS/2 keyboard
  • 1 x audio line-in - mini-jack
  • 1 x audio line-out - mini-jack
  • 1 x microphone - mini-jack
  • 1 x PS/2 mouse
  • 1 x VGA
  • 1 x DVI-D
Internal Interfaces
  • 4 x USB 2.0 - header
  • 2 x USB 3.0 - header
  • 2 x serial - header
  • 1 x parallel - header
  • 1 x speaker - header
  • 2 x audio - header
Power Connectors4-pin ATX12V connector, 24-pin main power connector
Storage Interfaces
  • SATA-600 -connectors: 6 x 7pin Serial ATA
  • SATA-600 / PCIe 3.0 -connectors: 1 x M.2
  • PCIe 3.0 -connectors: 1 x M.2
Features
BIOS FeaturesWfM 2.0 support, Multilingual BIOS, UEFI BIOS, ACPI 5.0 support, DMI 3.0 support, SMBIOS 3.0 support
BIOS TypeAMI
Hardware FeaturesJack retasking, ASUS Q-Design, Q-DIMM, Q-Slot, audio jack detect technology, Intel Extreme Memory Profile (XMP) support, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Intel Clear Video HD Technology, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, ASUS Overvoltage Protection, Moistureproof PCB, Intel Optane Memory Ready, ASUS 5X Protection III, ASUS SafeSlot Core
Sleep / Wake UpWake on LAN (WOL), wake on ring (WOR)
General
Chipset TypeIntel B250
Compatible ProcessorsPentium, Celeron, Core i5, Core i3, Core i7 (supports 6th and 7th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)
Max Processors Qty1
Processor SocketLGA1151 Socket
Product TypeMotherboard - micro ATX
Graphics
Max Allocated RAM Size1 GB
LAN
Network ControllerIntel I219V
Network InterfacesGigabit Ethernet
Miscellaneous
Cables Included2 x Serial ATA cable
Compliant StandardsPlug and Play
Depth24.4 cm
Included Accessories1 x M.2 screw, I/O back cover
Software IncludedDrivers & utilities
Width24.4 cm
Supported RAM
Bus Clock2400 MHz, 2133 MHz
FeaturesIntel Extreme Memory Profiles (XMP)
Max Size64 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckNon-ECC
TechnologyDDR4
