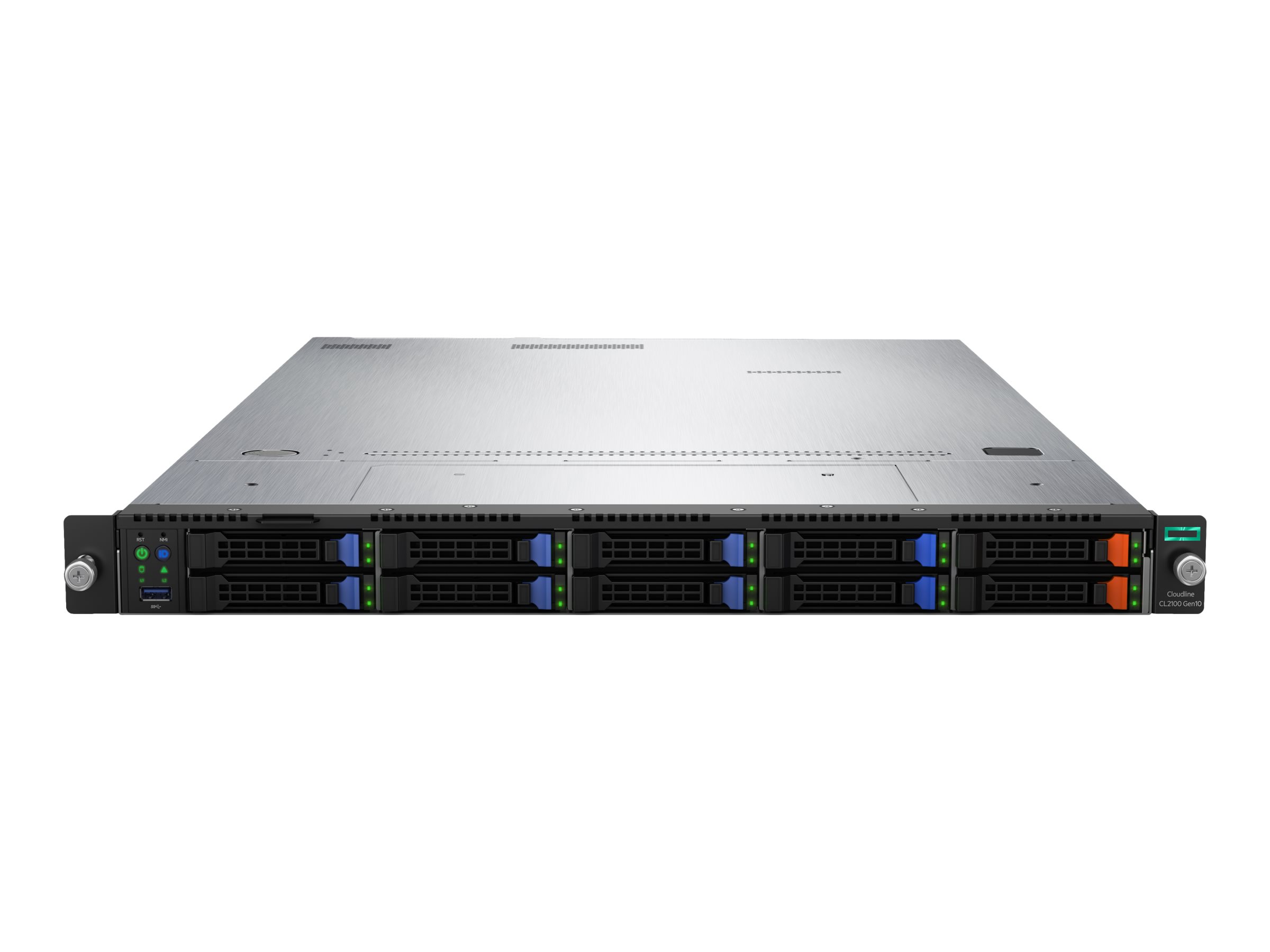

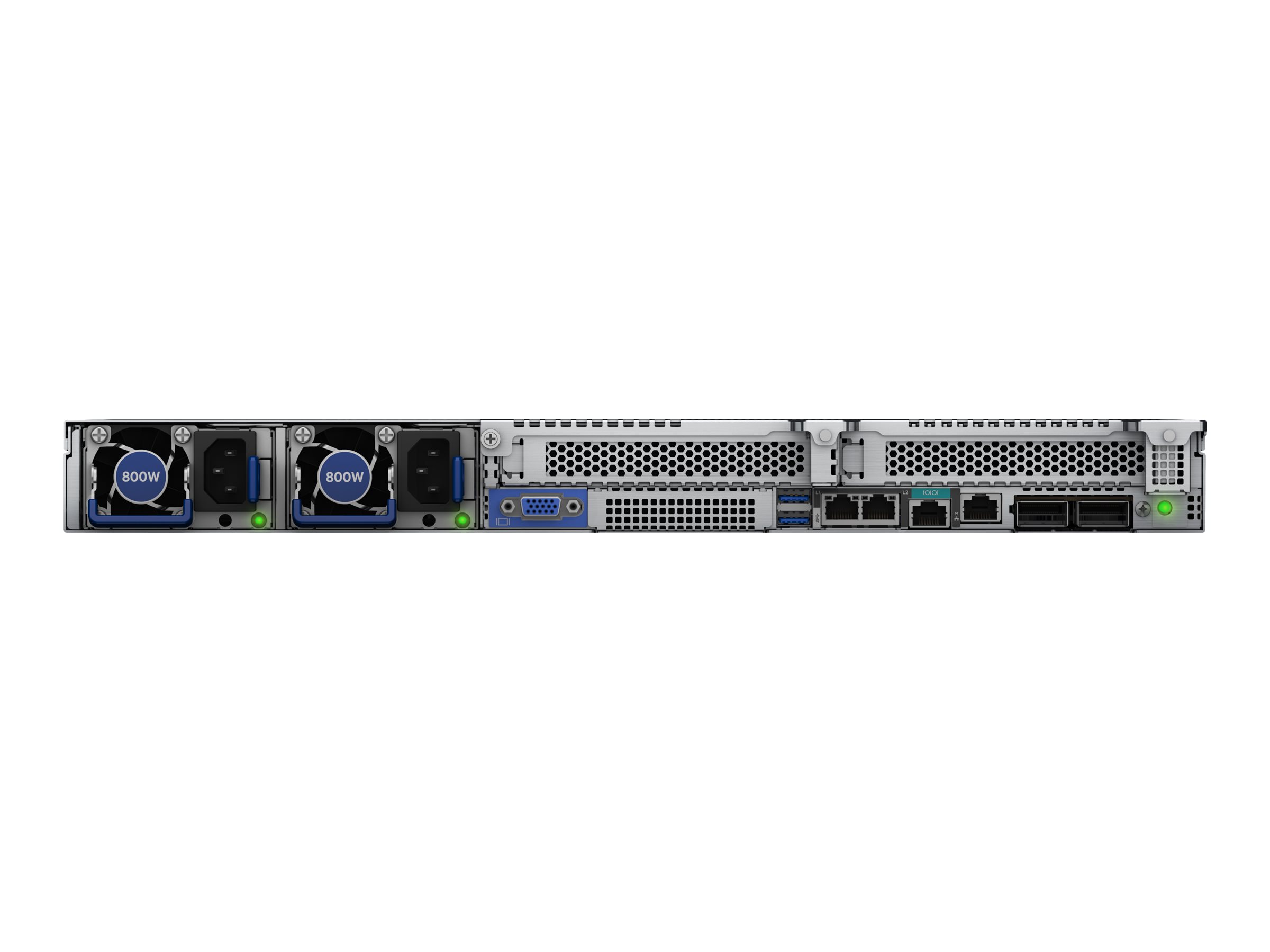

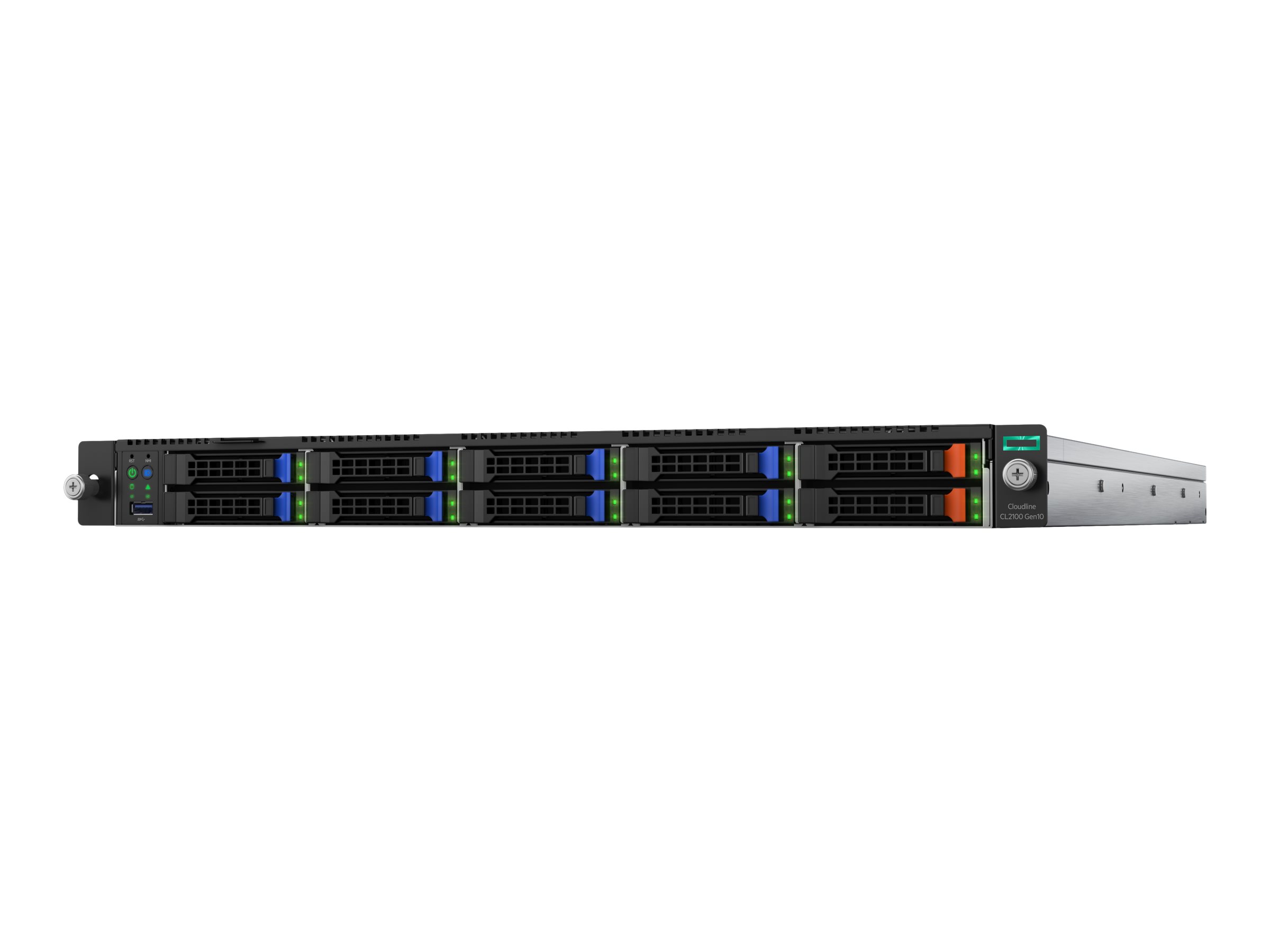

HPE Cloudline CL2100 Gen10
Stock: n/a
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HPE Cloudline CL2100 Gen10
- Server
- rack-mountable 1U
- 2-way
- no CPU up to
- RAM 0 GB
- hot-swap 2.5" bay(s)
- no HDD
- AST2500
- Gigabit Ethernet
- monitor: none
- CTO, factory integrated
| Additional Details | |
|---|---|
| Mfr Part #: | 880791-B21#0D1 |
| SHI Part #: | 35833189 |
| Category: | Servers |
| UNSPSC: | 43211501 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Servers |
| Description | HPE Cloudline CL2100 Gen10 - Server - rack-mountable 1U - 2-way - no CPU up to - RAM 0 GB - hot-swap 2.5" bay(s) - no HDD - AST2500 - Gigabit Ethernet - monitor: none - CTO, factory integrated |
| Manufacturer | Hewlett Packard Enterprise |
| UNSPSC | 43211501 |
| Main Specifications | |
| Chassis / Form Factor | Rack-mountable |
| Chassis / Server Storage Bays | Hot-swap |
| Dimensions & Weight / Depth | 72.69 cm |
| Dimensions & Weight / Height | 3.4 cm |
| Dimensions & Weight / Weight | 11.5 kg |
| Dimensions & Weight / Width | 43.78 cm |
| Display / Type | None. |
| Header / Brand | HPE |
| Mainboard / Chipset Type | Intel C621 |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| Packaged Quantity | 1 |
| Processor / Type | No CPU |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Memory Specification Compliance | PC4-21333 |
| RAM / Technology | DDR4 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 0 GB |
| System / Type | Server |
| Video Output / Graphics Processor | ASPEED AST2500 |
| Dimensions & Weight | |
| Depth | 72.69 cm |
| Height | 3.4 cm |
| Weight | 11.5 kg |
| Width | 43.78 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 80% |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| Slots |
|
| General | |
| Hot-Swap Bays Qty | 10 |
| Product Form Factor | Rack-mountable - 1U |
| Server Scalability | 2-way |
| Type | Server |
| Graphics Controller | |
| Graphics Processor | ASPEED AST2500 |
| Video Interfaces | VGA |
| Hard Drive | |
| Type | No HDD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 3 years - response time: 5 business days |
| Miscellaneous | |
| Compliant Standards | ACPI 6.1 |
| Included Accessories | 7 x redundant fans |
| Pricing Type | CTO, factory integrated |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Features | Wake on LAN (WoL), PXE support |
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) |
| Remote Management Protocol | IPMI 2.0 |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| 80 PLUS Certification | 80 PLUS Platinum |
| Device Type | Power supply - hot-plug |
| Installed Qty | 0 |
| Max Supported Qty | 2 |
| Power Provided | 800 Watt |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Processor / Chipset | |
| Chipset Type | Intel C621 |
| CPU | No CPU |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 2 |
| RAM | |
| Features | Memory Mirroring, static virtual lockstep, memory rank sparing, correctable error threshold |
| Form Factor | DIMM 288-pin |
| Installed Size | 0 GB (installed) / 1.5 TB (max) |
| Memory Specification Compliance | PC4-21333 |
| RAM Supported |
|
| Rated Memory Speed | 2666 MHz |
| Slots | 24 (total) / 24 (empty) |
| Technology | DDR4 SDRAM |
| Storage Controller | |
| Controller Interface Type | SATA 6Gb/s |
| Type | SATA |
