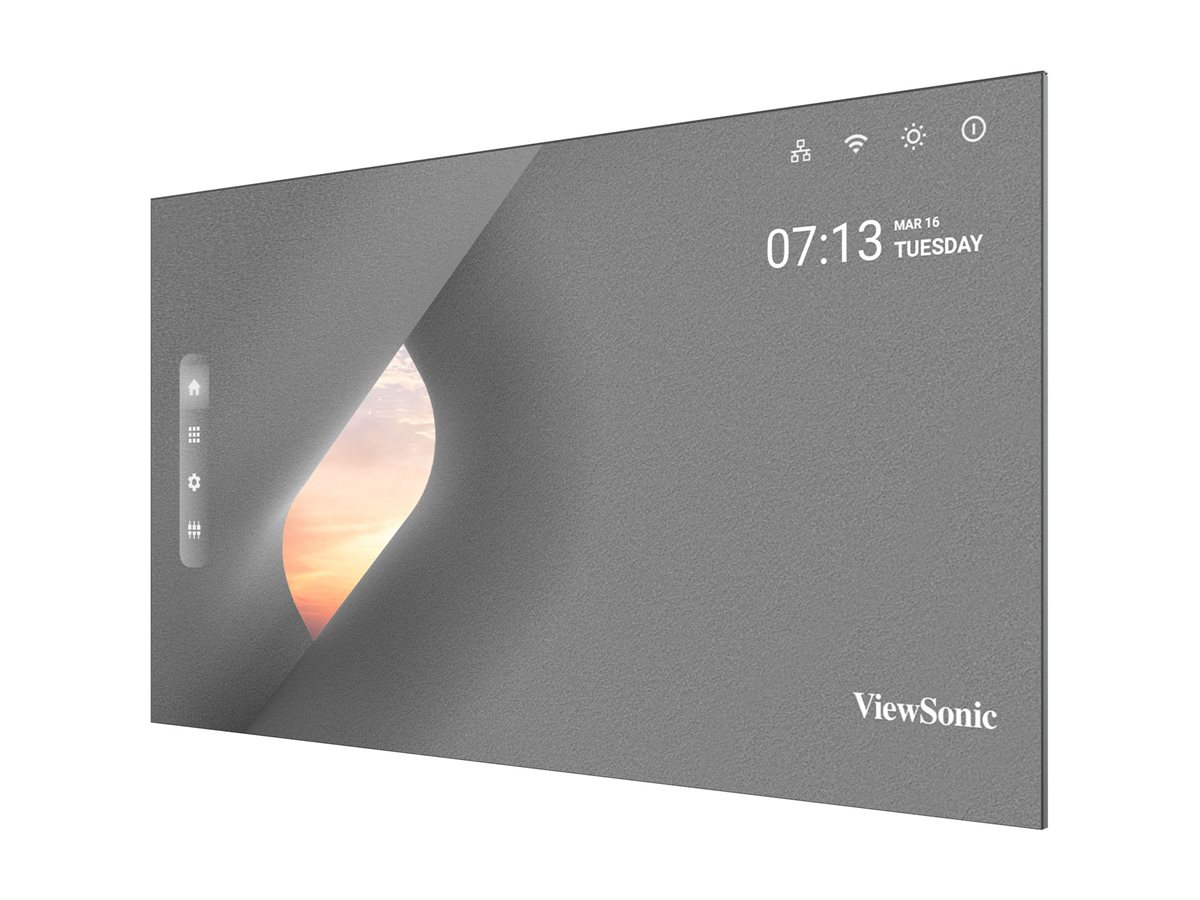

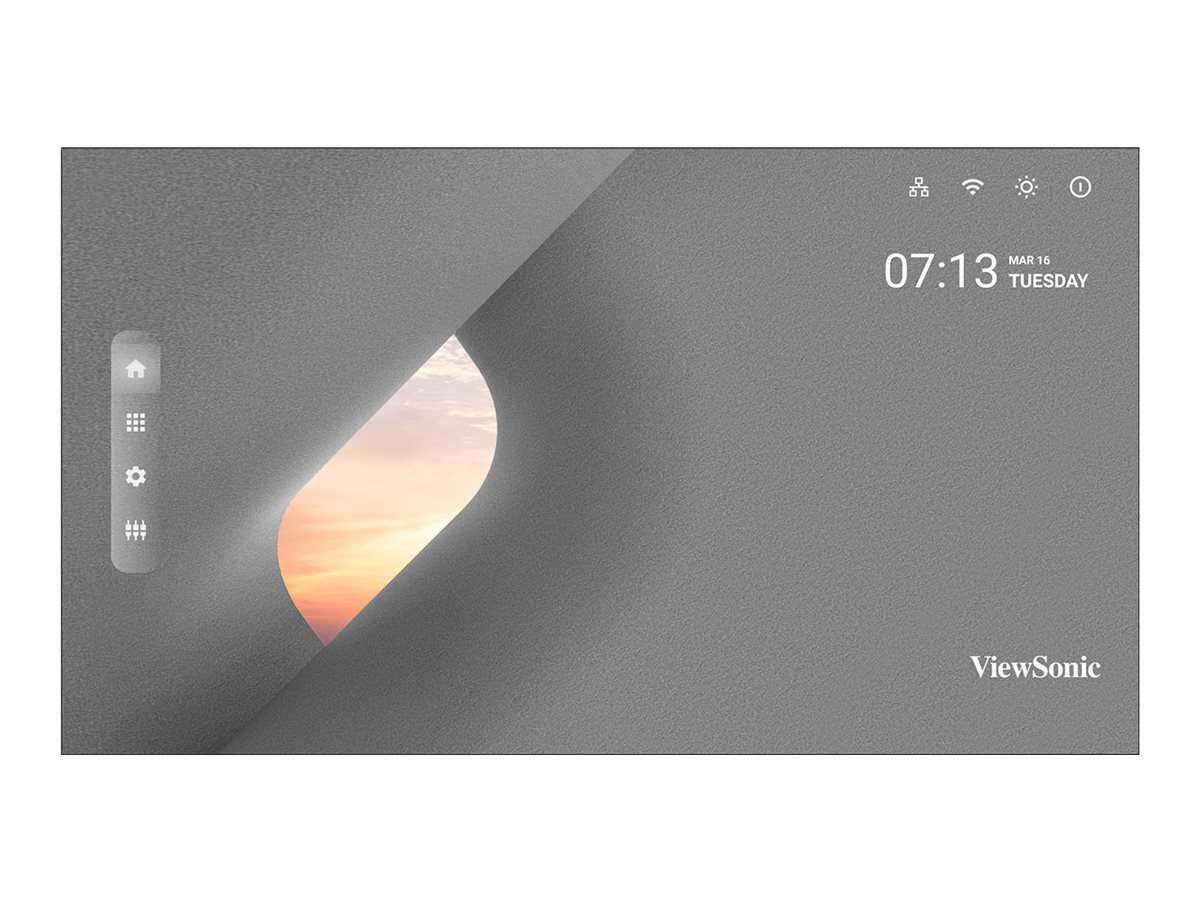

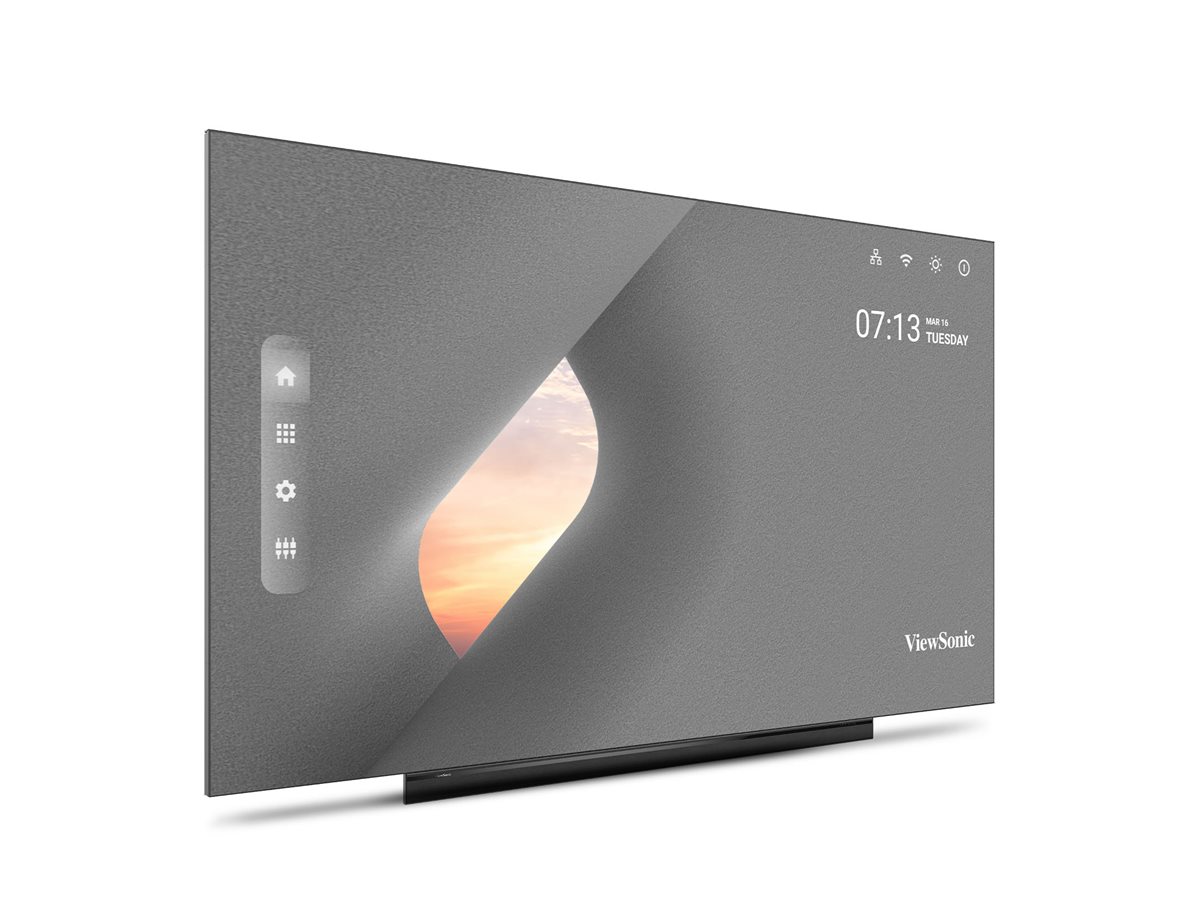

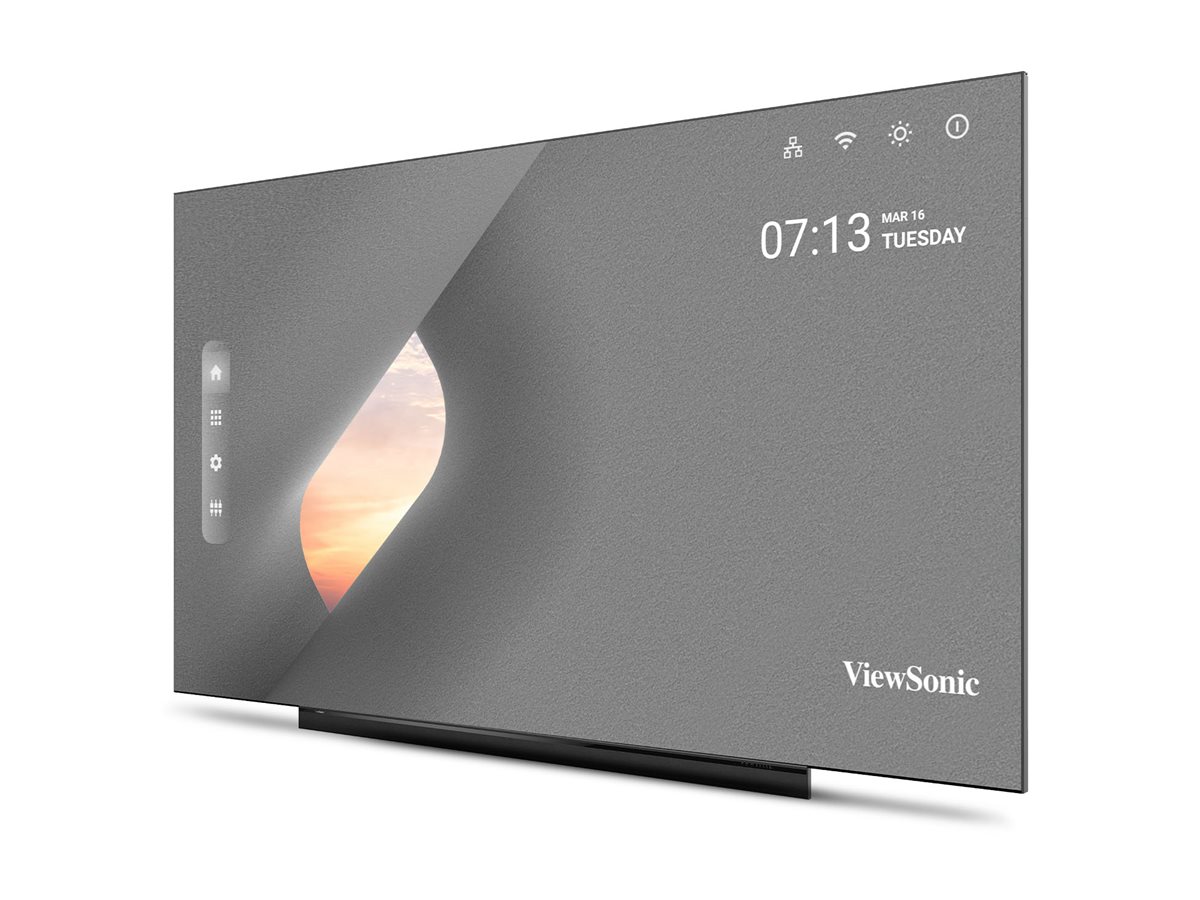

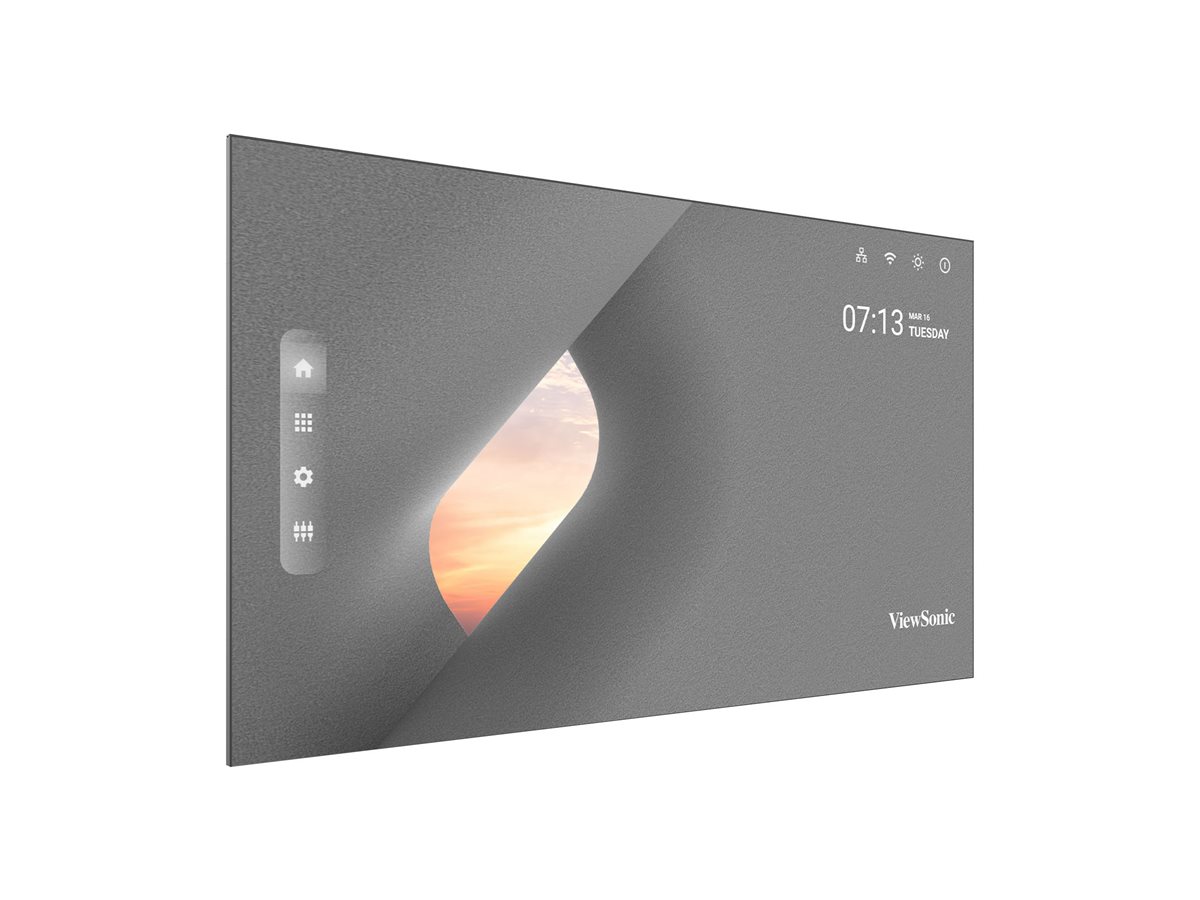

231IN ALL-IN-ONE DIRECT VIEW LEDISPLAY WITH 2048X1152 3840HZ
Stock: n/a
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
231IN ALL-IN-ONE DIRECT VIEW LEDISPLAY WITH 2048X1152 3840HZ
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | LDM231-251 |
| SHI Part #: | 47609947 |
| Category: | Flat panel displays |
| UNSPSC: | 43211902 |
| Manufacturer: | ViewSonic |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Flat panel displays |
| Description | 231IN ALL-IN-ONE DIRECT VIEW LEDISPLAY WITH 2048X1152 3840HZ |
| Manufacturer | ViewSonic |
| MSRP | £0.00 |
| UNSPSC | 43211902 |
| Main Specifications | |
| Height | 207.87 |
| Length | 138.60 |
| UPC | 0766907026542 |
| Width | 396.85 |
| Audio System | |
| Output Power / Total | 60 Watt |
| Speaker System | 2 speakers |
| Speakers | 2 x speaker - 30 Watt |
| Connections | |
| Connector Type |
|
| Dimensions & Weight (Shipping) | |
| Weight (Shipping) | 726 kg |
| Dimensions & Weight Details | |
| Dimensions & Weight Details |
|
| Display | |
| Additional Features | Detachable system control box, LAN Control, Glue-on-Board (GOB) surface treatment technology, designed for 24/7 operation, 100 brightness adjustable levels, 13-bit LED grayscale |
| Backlight Life | 100,000 hours |
| Brightness | 600 cd/m² |
| Frame Rate & Enhancement Technology | 3840 Hz Refresh Rate |
| Image Aspect Ratio | 16:9 |
| Image Contrast Ratio | 6500:1 |
| LCD Backlight Technology | Direct View LED |
| Pixel Pitch | 2.5 mm |
| Resolution | 2048 x 1152 |
| Viewing Angle | 170° |
| Viewing Angle (Vertical) | 170° |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 80% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Commercial Use | Yes - digital signage |
| Depth | 3.1 cm |
| Diagonal Class | 231" |
| Dimensions | Panel without mount |
| HDMI Ports Qty | 4 ports |
| Height | 288 cm |
| Modes | Landscape mode |
| Operating System | Android OS 9.0 |
| PC Interface | Serial RS-232, USB-C, HDBaseT |
| Power Consumption (Max) | 4124 Watt |
| Power Consumption Operational | 1443 Watt |
| Product Type | LED-backlit LCD flat panel display |
| Sensors | Ambient light sensor (ALS) |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| Weight | 378 kg |
| Width | 513.4 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Media Player | |
| Configuration | Rockchip RK3399 - 4 GB DDR4 - 32 GB (available 26 GB) |
| USB Port | Yes |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | IP54 front, FCC, cTUVus, HDCP 2.2 |
| Included Accessories | Wall mount, remote control, ViewSonic LD-MK-004 |
| Network & Internet Multimedia | |
| Connectivity | LAN, Wi-Fi |
| Power | |
| Input Voltage | AC 100-120 V (50/60 Hz) |
| Power Consumption (Off Mode) | 0 Watt |
| Power Consumption Sleep | 0.5 Watt |
| Power Device | Power supply |
| Remote Control | |
| Type | Remote control |
| Video Features | |
| Input Video Formats | 480p, 576p, 720p, 1080p, 2160p |
