WD Red SA500 WDS100T1R0B-68A4Z0
Stock: 10
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

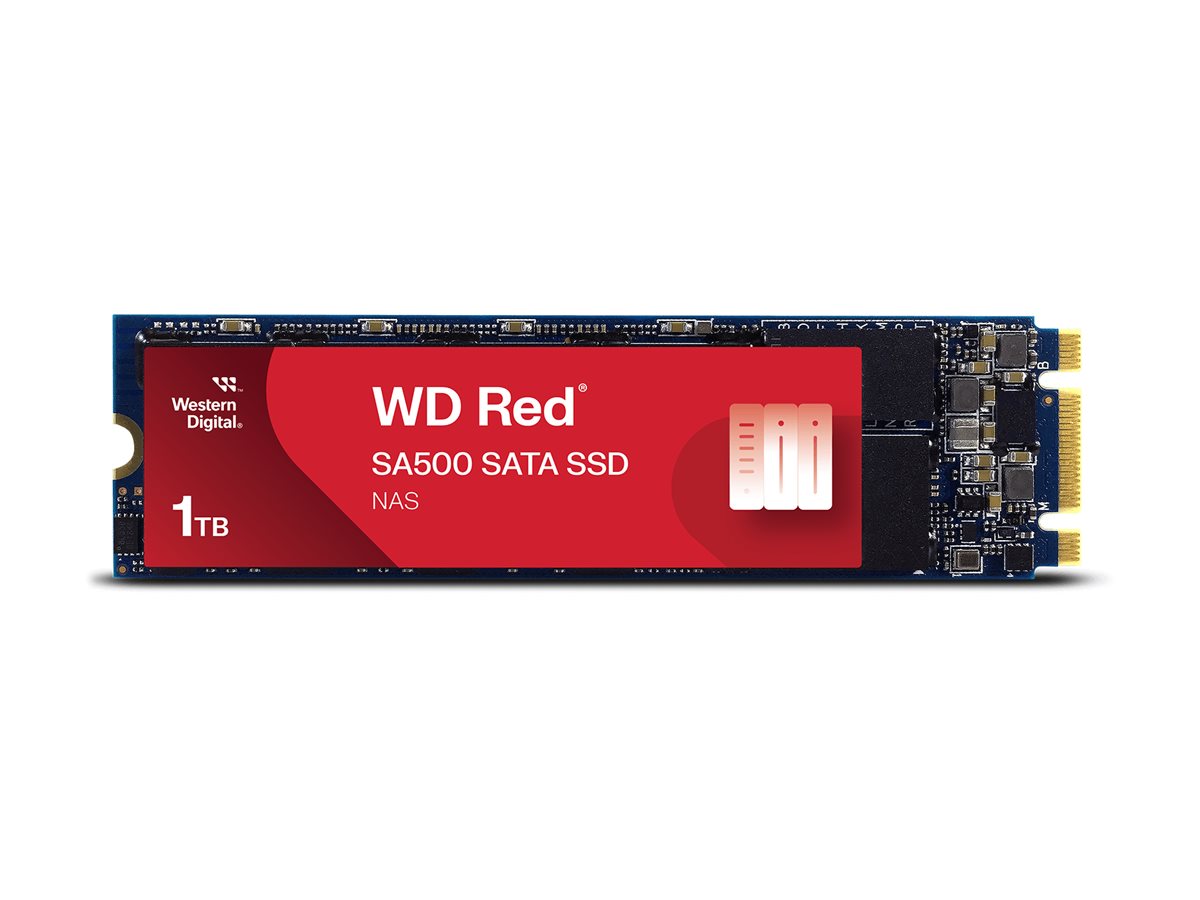

WD Red SA500 WDS100T1R0B-68A4Z0
- SSD
- 1 TB
- internal
- M.2 2280
- SATA 6Gb/s
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | WDS100T1R0B-68A4Z0 |
| SHI Part #: | 48933517 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Western Digital |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | WD Red SA500 WDS100T1R0B-68A4Z0 - SSD - 1 TB - internal - M.2 2280 - SATA 6Gb/s |
| Manufacturer | Western Digital |
| MSRP | £0.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 80 mm |
| Dimensions & Weight / Height | 2.38 mm |
| Dimensions & Weight / Weight | 7 g |
| Dimensions & Weight / Width | 22 mm |
| Hard Drive / Capacity | 1 TB |
| Hard Drive / Form Factor | M.2 2280 |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | Serial ATA-600 |
| Hard Drive / Interface | Serial ATA-600 |
| Header / Brand | WD |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -55 °C |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms half-sine |
| Vibration Tolerance (non-operating) | 4.9 g @ 7-800 Hz |
| Vibration Tolerance (operating) | 5 g @ 10-2000 Hz |
| Expansion & Connectivity | |
| Compatible Bay | M.2 2280 |
| Interfaces | 1 x SATA 6 Gb/s - M.2 Card |
| General | |
| Capacity | 1 TB |
| Depth | 80 mm |
| Device Type | Solid state drive - internal |
| Features | 24x7 continuous operation, 3D NAND Technology |
| Form Factor | M.2 2280 |
| Height | 2.38 mm |
| Interface | SATA 6Gb/s |
| Weight | 7 g |
| Width | 22 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | BSMI, ICES-003, NMB-003, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB Scheme, TUV, UL |
| Performance | |
| 4KB Random Read | 95000 IOPS |
| 4KB Random Write | 85000 IOPS |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 560 MBps (read) / 530 MBps (write) |
| SSD Endurance | 600 TB |
| Power | |
| Power Consumption |
|
| Reliability | |
| 24x7 Operation | Yes |
| MTBF | 2,000,000 hours |
| Recoverable Errors | 1 per 10^17 |
