WD Blue SA510 WDS200T3B0B-00C7C0
Stock: 3
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

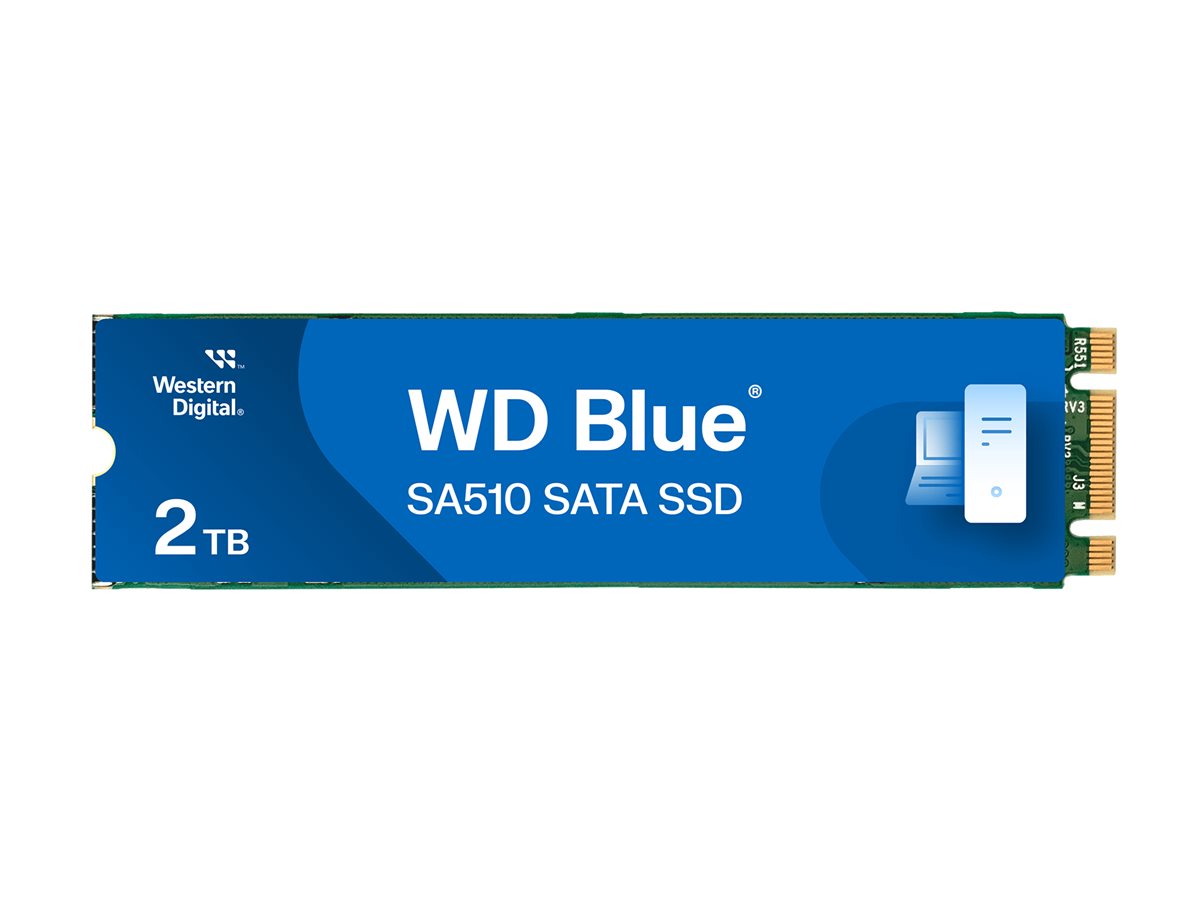

WD Blue SA510 WDS200T3B0B-00C7C0
- SSD
- 2 TB
- internal
- M.2 2280
- SATA 6Gb/s
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | WDS200T3B0B-00C7C0 |
| SHI Part #: | 48990544 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Western Digital |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | WD Blue SA510 WDS200T3B0B-00C7C0 - SSD - 2 TB - internal - M.2 2280 - SATA 6Gb/s |
| Manufacturer | Western Digital |
| MSRP | £0.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 80 mm |
| Dimensions & Weight / Height | 2.38 mm |
| Dimensions & Weight / Weight | 6.4 g |
| Dimensions & Weight / Width | 22 mm |
| Hard Drive / Capacity | 2 TB |
| Hard Drive / Form Factor | M.2 2280 |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | Serial ATA-600 |
| Hard Drive / Interface | Serial ATA-600 |
| Header / Brand | WD |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -55 °C |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms half-sine |
| Vibration Tolerance (non-operating) | 4.9 gRMS @ 7-800 Hz |
| Vibration Tolerance (operating) | 5 gRMS @ 10-2000 Hz |
| Expansion & Connectivity | |
| Compatible Bay | M.2 2280 |
| Interfaces | 1 x SATA 6 Gb/s |
| General | |
| Capacity | 2 TB |
| Depth | 80 mm |
| Device Type | Solid state drive - internal |
| Form Factor | M.2 2280 |
| Height | 2.38 mm |
| Interface | SATA 6Gb/s |
| Weight | 6.4 g |
| Width | 22 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | FCC, UL, TUV, KC, BSMI, VCCI, Morocco |
| Performance | |
| 4KB Random Read | 85000 IOPS |
| 4KB Random Write | 83000 IOPS |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 560 MBps (read) / 520 MBps (write) |
| SSD Endurance | 500 TB |
| Power | |
| Power Consumption |
|
| Software & System Requirements | |
| Software Included | Acronis True Image, Dropbox Professional (free for 3 months) |
