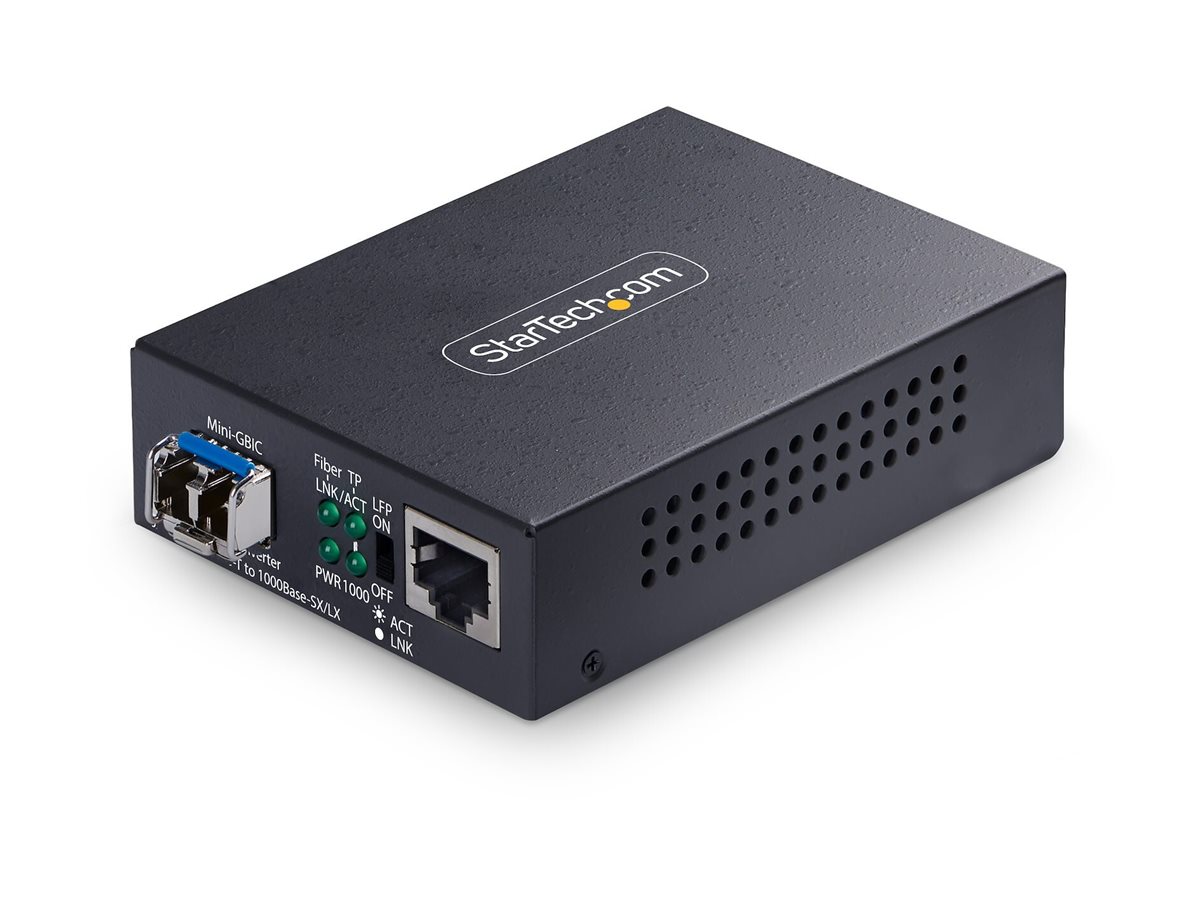

Startech - Fiber media converter
MSRP£124.01
Stock: 5
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Startech - Fiber media converter
- 1GbE
- over fiber optic
- 10Base-T, 1000Base-LX, 100Base-TX, 1000Base-T
- LC Duplex single-mode / RJ-45
- up to 20 km
- 1310 nm
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | £124.01 |
| Mfr Part #: | MCM1110SMLC20 |
| SHI Part #: | 50957751 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | StarTech.com |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Startech - Fiber media converter - 1GbE - over fiber optic - 10Base-T, 1000Base-LX, 100Base-TX, 1000Base-T - LC Duplex single-mode / RJ-45 - up to 20 km - 1310 nm - TAA Compliant |
| Manufacturer | StarTech.com |
| MSRP | £124.01 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Header / Brand |
|
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 1 Gbps |
| Networking / Form Factor | Desktop / wall / DIN rail mountable |
| Networking / Type | Fiber media converter |
| Packaged Quantity | 1 |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 13.3 cm |
| Shipping Height | 6.6 cm |
| Shipping Weight | 328 g |
| Shipping Width | 28 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Device Type | Fiber media converter |
| Form Factor | Desktop / wall / DIN rail mountable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | Plug and Play, FCC, RoHS, WEEE, RCM |
| MTBF | 50,000 hours |
| TAA Compliant | Yes |
| Networking | |
| Cabling Type | 10Base-T, 1000Base-LX, 100Base-TX, 1000Base-T |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, Link Loss Return (LLR), Link Loss Carry Forward (LLCF), Link Fault Pass Through function (LFP), metal housing, 9 KB Jumbo Frame, LED status indicators, compact |
| Max Transfer Distance | 20 km |
| Optical Wave Length | 1310 nm |
| Status Indicators | Power, link/activity, fault, link pass-through, link |
| Power | |
| Power Consumption Operational | 4.6 watt |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V |
