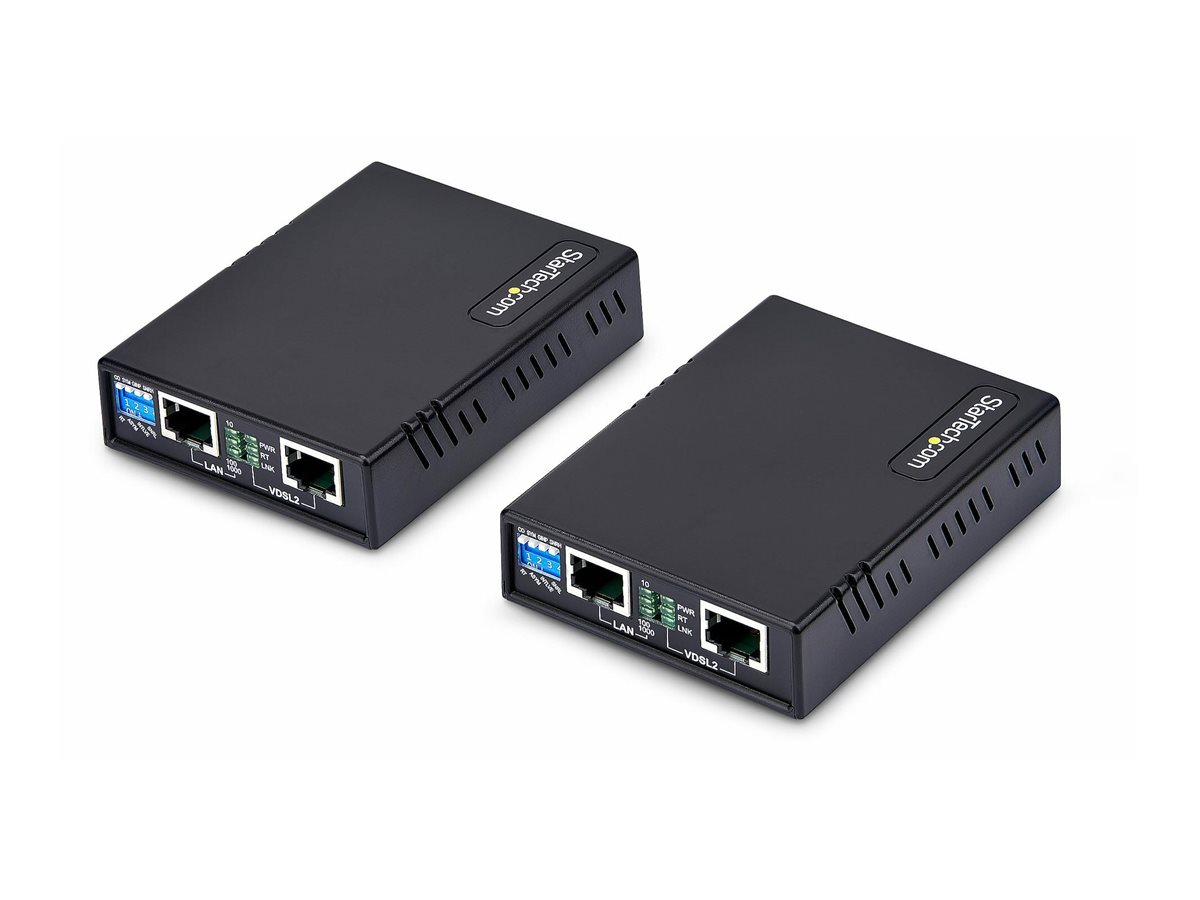

Startech - Extender Kit
Stock: 4
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Startech - Extender Kit
- short-haul modem
- 100Mb LAN, Ethernet over VDSL2
- 10Base-T, 100Base-TX
- 4 ports
- up to 1 km
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | VDSL-LAN-EXTENDER-EU |
| SHI Part #: | 51128321 |
| Category: | Modems |
| UNSPSC: | 43222628 |
| Manufacturer: | StarTech.com |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Modems |
| Description | Startech - Extender Kit - short-haul modem - 100Mb LAN, Ethernet over VDSL2 - 10Base-T, 100Base-TX - 4 ports - up to 1 km - TAA Compliant |
| Manufacturer | StarTech.com |
| MSRP | £0.00 |
| UNSPSC | 43222628 |
| Main Specifications | |
| Dimensions & Weight / Weight | 110 g |
| Dimensions & Weight / Width | 7.2 cm |
| Header / Brand |
|
| Header / Country Kits | Europe |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 300 Gbps |
| Networking / Form Factor | Surface / wall mountable |
| Networking / Type | Short-haul modem |
| Packaged Quantity | 1 |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Weight | 110 g |
| Width | 7.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 15 cm |
| Shipping Height | 13 cm |
| Shipping Weight | 700 g |
| Shipping Width | 18 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% RH (non-condensing) |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Device Type | Short-haul modem |
| Form Factor | Surface / wall mountable |
| Localization | Europe |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | RoHS, WEEE |

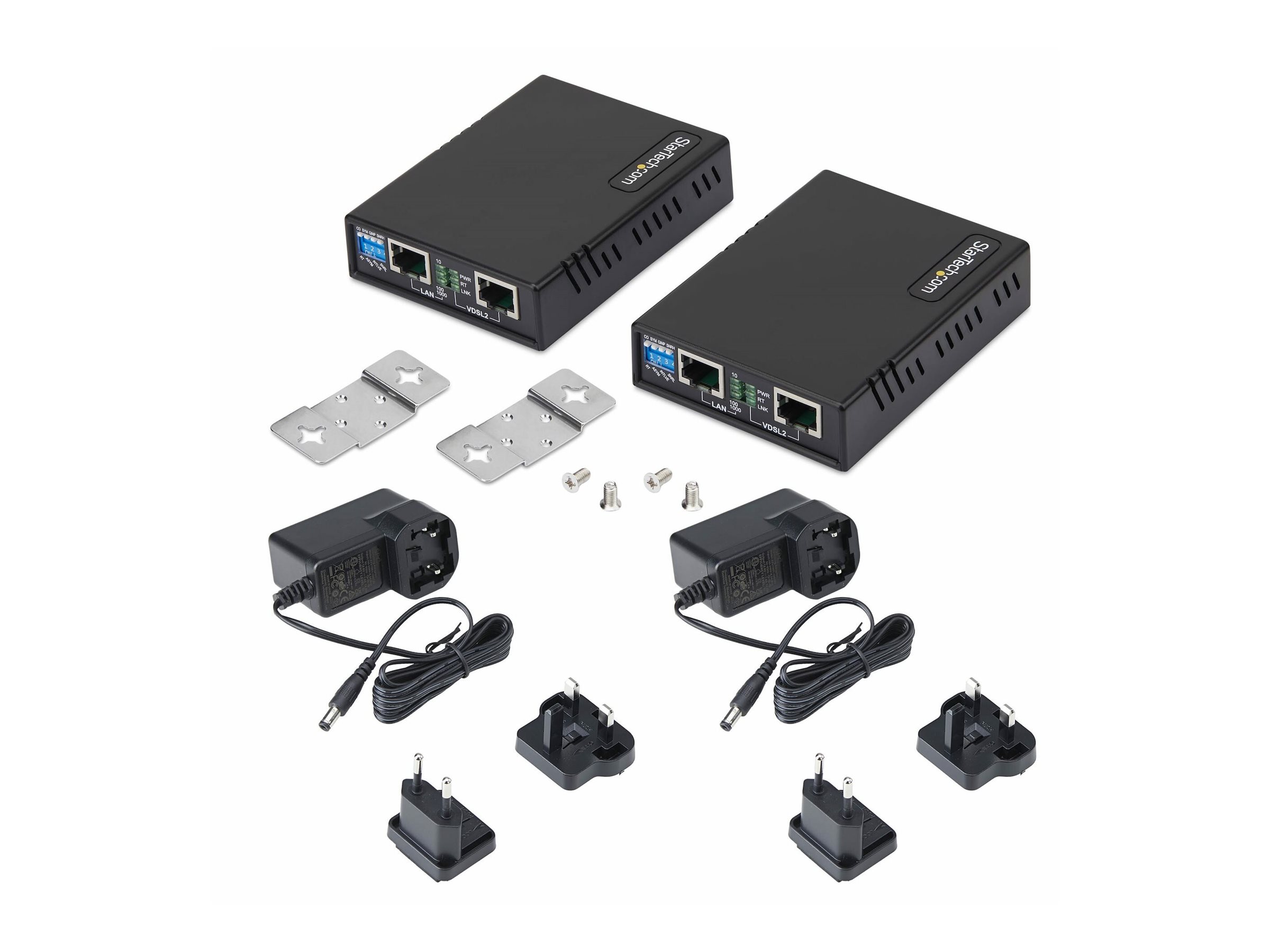

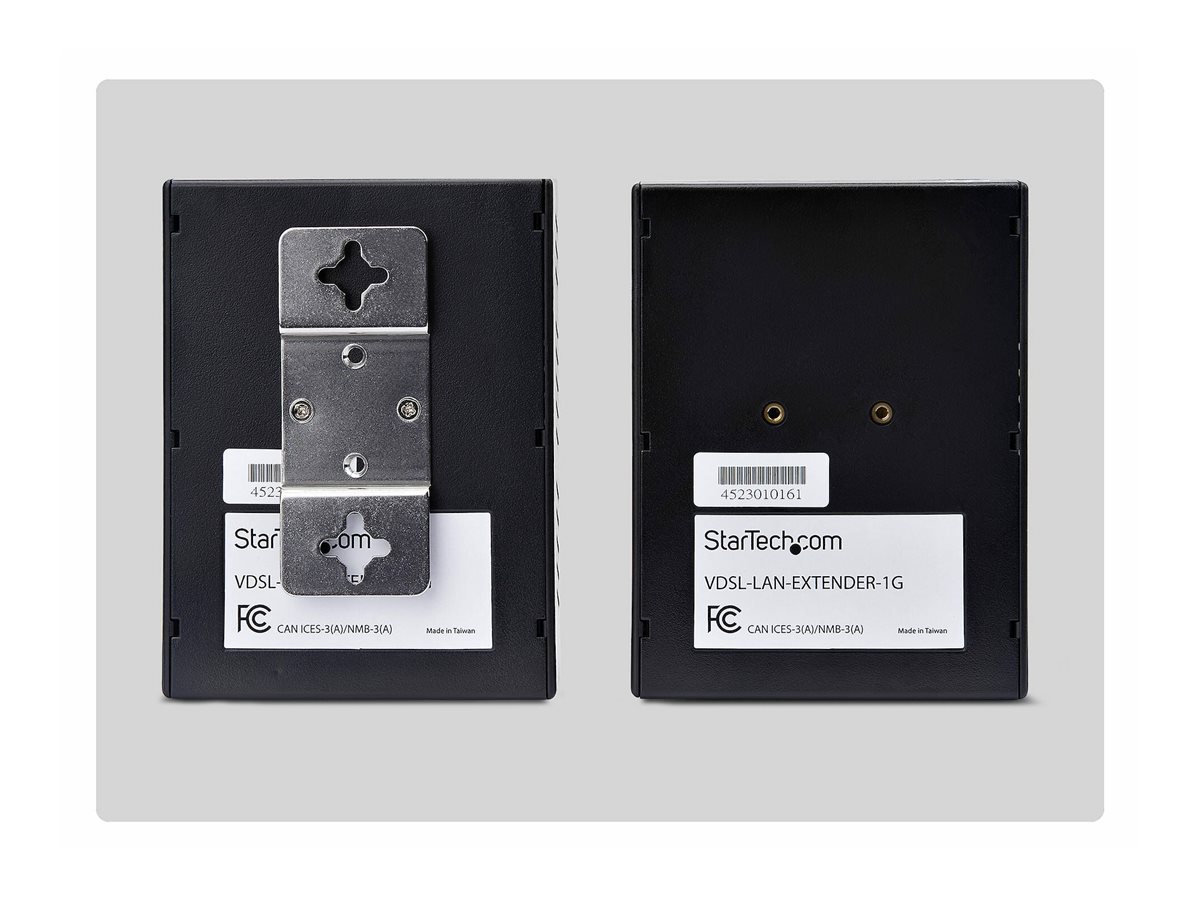

| Included Accessories | 2 mounting brackets |
| MTBF | 50,000 hours |
| TAA Compliant | Yes |
| Networking | |
| Cabling Type | 10Base-T, 100Base-TX |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, Ethernet over VDSL2 |
| Data Transfer Rate | 300 Gbps |
| Features | Auto-uplink (auto MDI/MDI-X), surge protection, plastic housing, built-in DIP switch, G.INP, VLAN Tagging, VDSL2 profiles 17a, 30a, 35b profiles support |
| Frequency Band | 30 MHz |
| Max Transfer Distance | 1 km |
| Ports Qty | 4 |

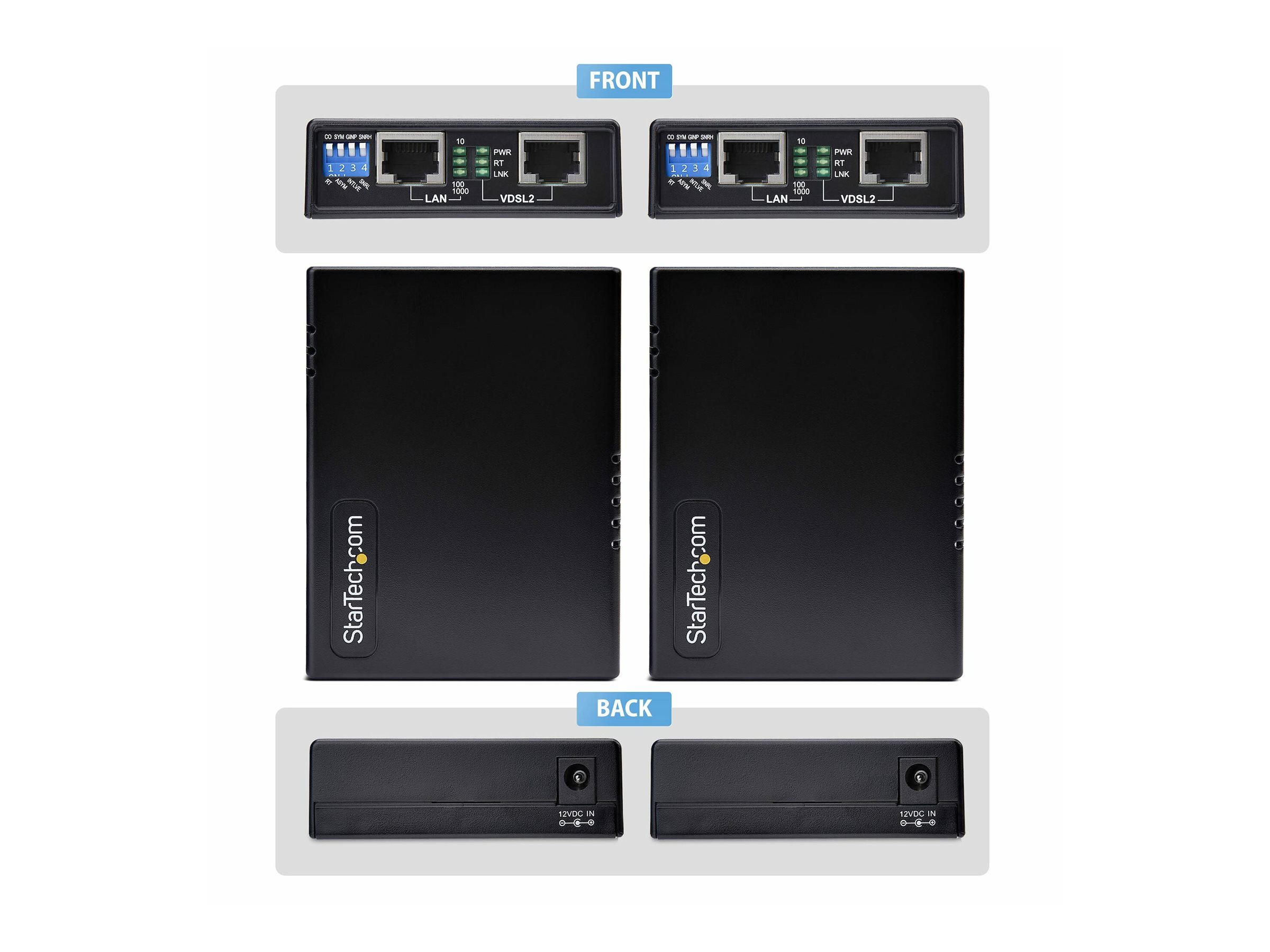

| Status Indicators | Power, status, link/speed, master, remote |
| Power | |
| Installed Qty | 2 |
| Power Consumption Operational | 3.8 Watt |
| Power Device | External power adapter |
| Voltage Required | DC 12 V |
